Young Padel Safe Panoramic Padel Court from China

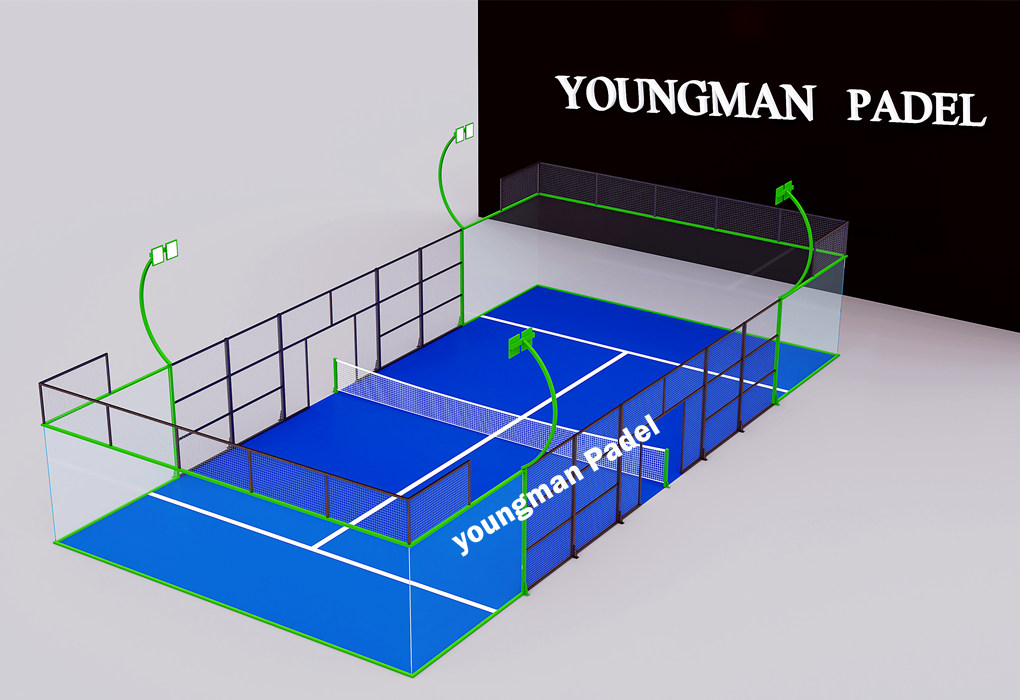

The super panoramic Padel tennis Court has an attractive appearance and structure, giving Padel tennis players a wider sense of space and unlimited visual enjoyment for the audience. This structure of super panoramic Padel Court  is suitable for indoor installation. Most official padel tennis tours use this model courts.

Of course, it can also be installed outdoors. But it is not suitable for outdoor areas with strong winds because this type of paddle tennis court has poor wind load resistance.

This model court size: 20*10meters, Meet Premier Padel Official Court Size Standards.

This professionally designed super panoramic padel tennis court uses a scientific mechanism design. High-quality national standard Q235 hot-dip galvanized steel pipes, the overall metal frame links the reinforced structure, and the structure is firm and safe. The glass uses European standard 12 mm thick explosion-proof tempered glass. Hidden reinforced fixing plates are used at the links. The super panoramic padel courts will not shake after installation.

Metal frame structure:

National standard Q235 hot-dip galvanized square tubes,

lamp pole columns: 100*100*3 mm.

Glass upper beam: 100*50*3mm,

Glass lower beam: 100*50*3mm,

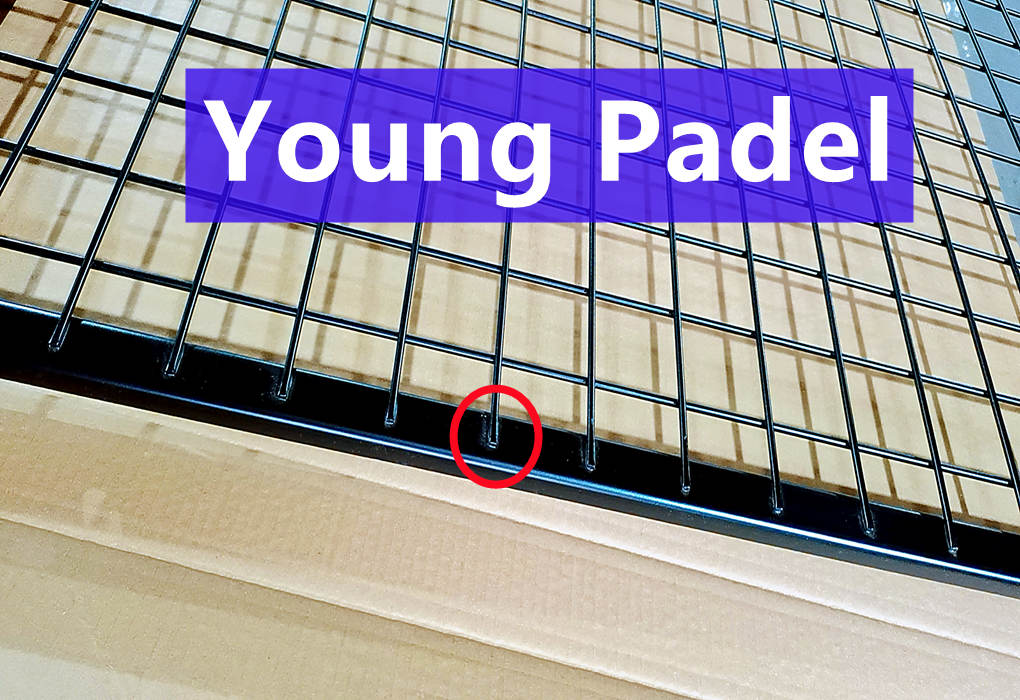

Mesh frame size: 1000*2000mm,

Frame tube: 50*30*2.5mm,

Mesh: 50*50*4mm,

Tempered glass:

Size: 2m*3m*18 pieces, thickness 12 mm.

Material: special explosion-proof tempered glass.

Meet European standards: EN 12150-1 ,

Lighting system:

Color: black, outdoor waterproof grade IP65,

Power: 200W LED,

Accessories and Screws:

All accessories and screws are made of 304 stainless steel, 304 stainless steel will not rust for life,

Strong and non-deformed, beautiful appearance,

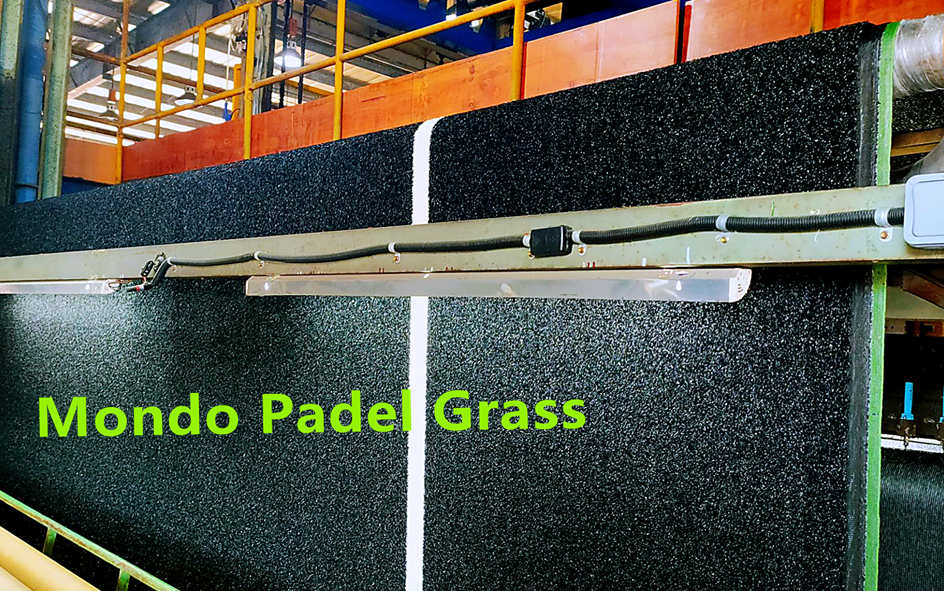

Mondo Style Top Quality Artificial Turf : Reinforced monofilament Grass

The artificial grass is produce by China biggest artificial grass factory.

Artificial curled grass : standard size roll 4000 mm/2000 mm.

Length: 20000 mm,  Height: 12 mm.  Grass silk: 9500 Dtex ,   Color: Blue or Green,

Guage Inch: 3/16,   Turf  Backing: PP+ PP+PU (3 layers),  Density: Turf density is 58800 / m² .
