Wheel Sliding System Padel Court Cover China Factory

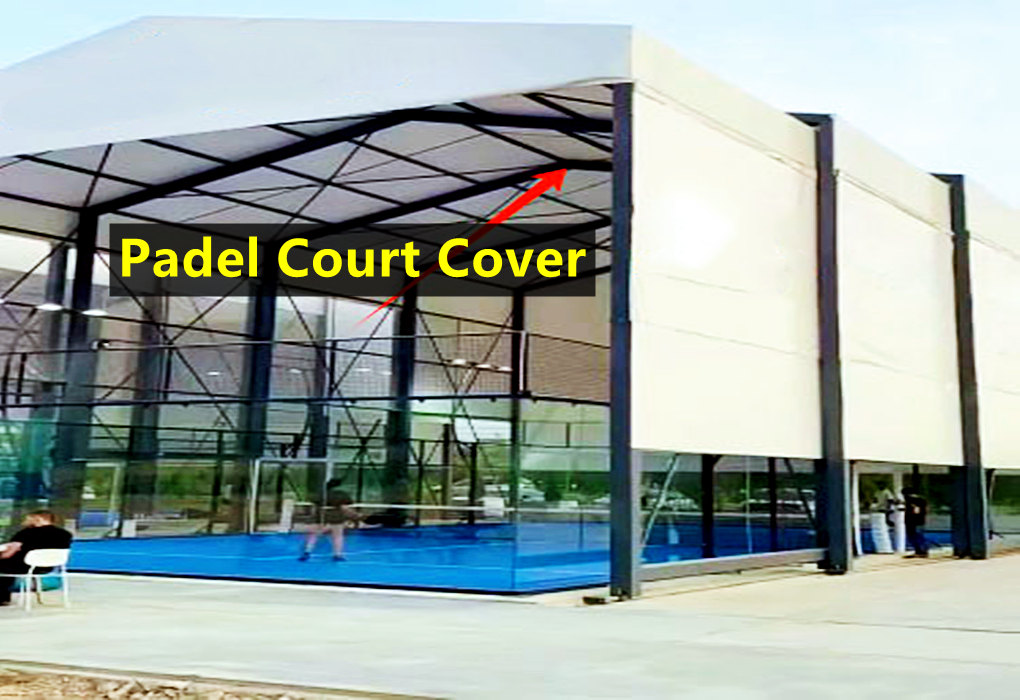

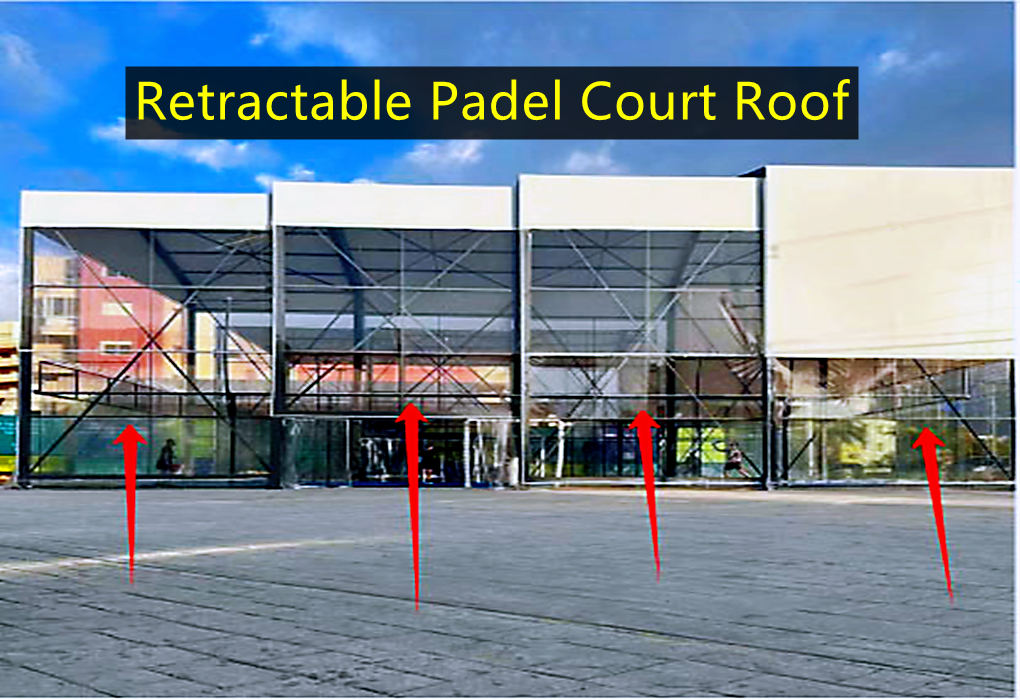

There are many different structural systems for Padel Court Roof . In order to improve the environment of the outdoor Padel tennis club, we have optimized and enhanced the advantages of different padel court roofs. Our architectural structural designer has scientifically designed this wheel slide system padel court cover, also known as the retractable padel court roof. But it is different from the electric retractable padel cover. Our pulley system roof is manually opened without a motor system. Reduce the disadvantages of motor system failure.

Do you want to your padel courts that is not affected by weather? Do you want your padel tennis court roof to be open and closed at any time?

This newly designed mobile automatic roof can meet your needs.

Roof frame structure:

Sliding track: high-quality channel steel structure with plugs at the head.

Roller: Single wheel load-bearing 1 ton high-quality roller.

Two tracks are installed on both sides of the board tennis court, and there is a roller under each column of the roof.

Let the entire roof slide open easily on the track.

The roof consists of four independent steel structures, and the overall design is divided into four parts, and the highest part is a fixed design.

The highest metal frame is fixed on the ground, which ensures the safety and firmness of the entire roof. The other 3 metal frames can be slid open.

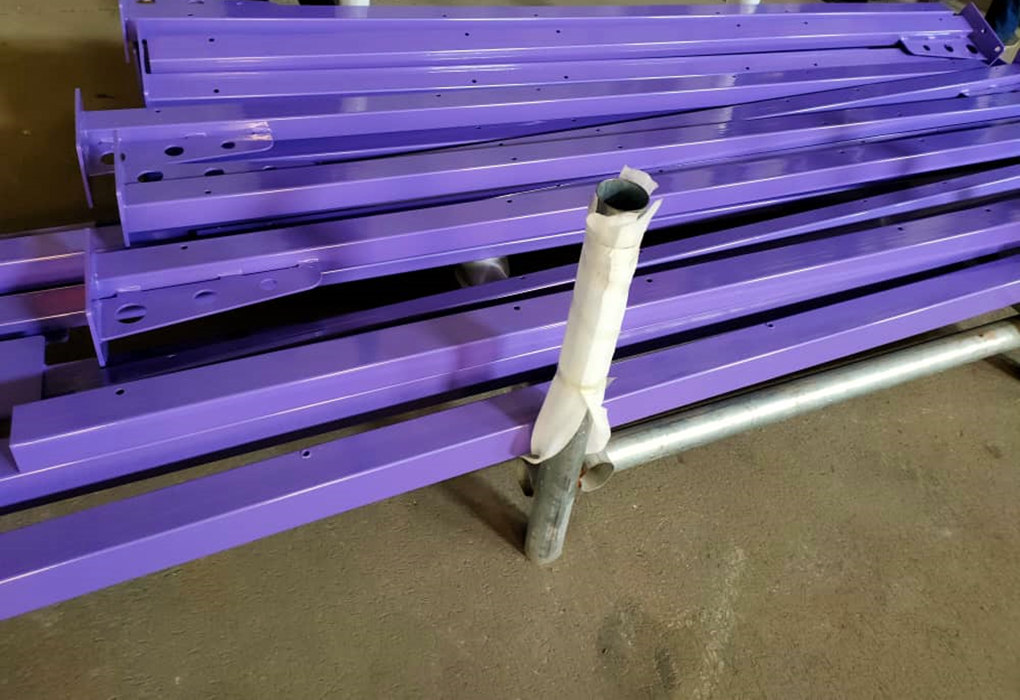

The frame columns are 150*150mm*5mm thick high-quality steel.

Ceiling height: 8 meters for the column height, 9.3 meters for the highest point, and 30cm less inside.

Membrane cloth: high-quality 1050g PVDF membrane structure. Anti-ultraviolet, anti-aging, white membrane cloth has very good light transmittance.

When you have a roof like this that can be opened at any time on your paddle tennis court. Keep your paddle tennis club away from rain

and high temperature. The roof can protect your paddle tennis court from water.
