Original Design Padel Court With Combined Double Columns

Product Features and Advantage ：

       This New Design Model  panoramic Padel Court have 2 sets Combined Double Pillars for the corner columns, In order to meet the requirements of special outdoor environments, this model Padel Courts designed by our professional mechanical engineers. This one specializes in making hurricane-resistant Court that can withstand wind loads up to 160 mph, also including up to 180 mph wind. The courts are all produced using hot-dip galvanized high-quality steel to ensure safety under extreme outdoor weather conditions.

Concrete foundation floor for Padel.

A good court must be installed on an excellent concrete surface.In this way, the overall solidity can be achieved.

Concrete foundation floor dimensions of 1 padel court: 20.8 meters length*10.8 meters width,

The thickness of the concrete floor must be more than 15 cm, and the concrete foundation must be equipped with 1.2 cm diameter steel bars. The spacing between steel bars should be 25 cm. Professional construction staff should check whether the completed floor is level.

Metal Frame System:

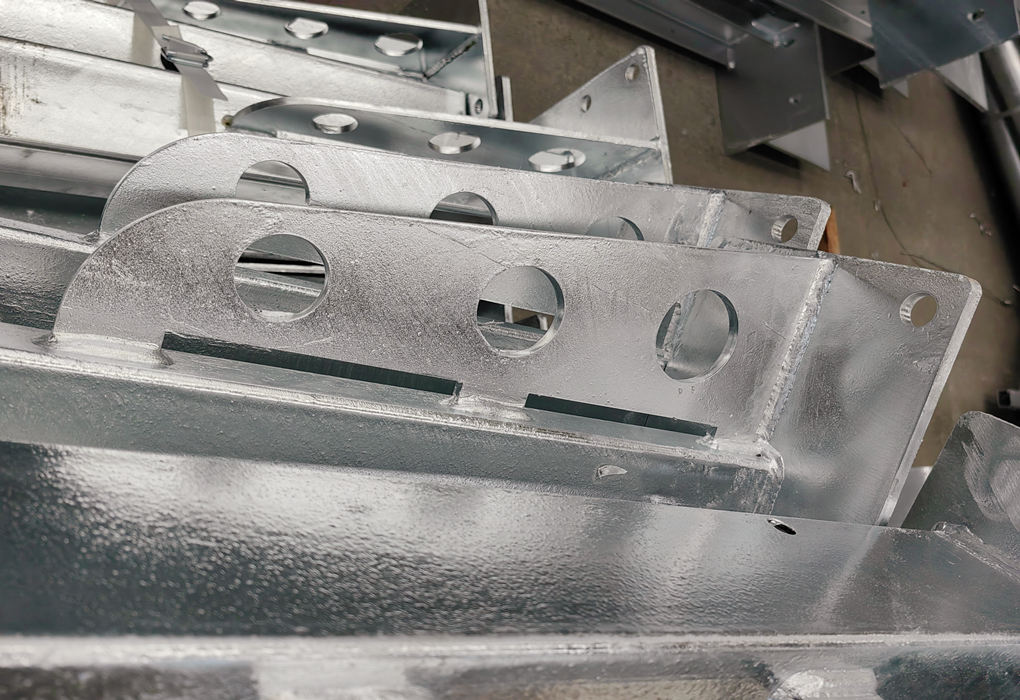

2 sets Hot-Dip Galvanized High Quality Q235B 100*50*3mm double-jointed pillars for the corner columns, Fixed on the base plate of 300*290*10 mm.

The 2 pieces of glasses at the corner are respectively fixed on the left and right columns of the double Jointed columns, which enhances the stability of the glass and minimizes the shaking of the entire paddle tennis court during exciting games. The links between the glass and the corner posts use 4 mm thickness 304 stainless steel connecting blocks. Make the overall system strong and not deformed after long-term impact.

Mesh Fence

Hot-Dip Galvanized Wire Mesh Diameter 4mm , Mesh Distance 50*50mm , Mesh Frame Size: 1*2 m, The end of the mesh is protected from scratches and hooks. The wire mesh has been sprayed with electrostatic zinc powder. The surface is smooth and delicate, durable and beautiful. all indicators meet the standards of GB15065-94 and IE60502, water absorption rate is 0%.

Our wire mesh uses monofilaments that are individually welded, making the fence stronger and more impact-resistant. All welding points are polished and edged, with no protruding sharp objects . The surface of the wire mesh is shot blasted and then sprayed with high-quality zinc powder to make the adsorption force of the powder on the surface of the wire mesh stronger and the treated surface smoother and more beautiful.

 Artificial Turf

Our white grass is woven directly into the whole artificial turf as a whole. The customer does not need to waste time on manual splicing by glue. The white grass and blue grass of other companies are separated, and customers need to waste time to splice them manually. Our artificial turf can be tiled directly on the padel court. It can save customers install time,white grass and blue grass are directly woven together. Very firm, no gaps. White grass and blue grass of other companies are separated. Customers need to waste time on manual splicing, and glue is needed to splice. Moreover, there is a gap between the white grass and blue grass, which is not firm. Easy to fall off.

     Curled Type, Reinforced monofilament Grass

Roll Size: 4000 mm/2000 mm.

 Height: 12 mm ,  Density: 63000/ m²

Grass silk : 10000 Dtex ,  Guage Inch: 3/16 ,

Turf Backing: PP Net+PU ,

Color: Blue or Green (Customizable)

 Comply with GB/T 20394-2006 (Sports Artificial Turf premium product ) .

   The Grass has non-slip design, 100% UV resistance and anti-aging composition. Longer service life outdoors .

Tempered Glass with 8 Countersunk Holes

China Biggest Glasses manufactured  and that complies the test resistance required by the European safety normative

Complies with European Standard EN 12150-1, Passed CE Certificate, 18 pieces*2995mm * 1995mm Glasses,

Use the best float glass as raw material. Every production process has quality inspection.Powerful production capacity. 60% of our production machines are imported from world-class famous brands in Europe. For example, cutting machines and polishing machines from Italy (Intermac, Bavelloni), cleaning machines from Germany (Benteler), tempering ovens from Finland (Glaston, Tamglass), fully-smart glass production system from Austria(LiSEC). The remaining 40% of our machines are from the best China brands, such as GoLive, TCME, Jinglass. Daily production capacity of tempered glass is more than 10000 sqm.

Excellent polishing edge and countersunk hole, no scratch or chip on glass surface. They can not only bring beautiful appearance, but also further enhance the strength of tempered glass.

 :

Accessories & Screws

All accessories and screws are made of 304 stainless steel, it can not rust for life, It is strong and does not deform, the crafts has a beautiful appearance.

The cutting, drilling and processing of all our accessories are done on CNC intelligent digital machines. According to technical drawing standards. There is no error in the size of the accessories.

Customers can install our padel courts more easily, conveniently and accurately

LED Lighting System

IP65 waterproof LED light. Easy to install. It is convenient to adjust the irradiation direction.8 groups LED lights with China Famous Brand, each Set power is 200 W.

The light column is embedded inside the fence.Height of the light column is 6000 mm, illumination reaches 300 Lux.The shell is thin, light in weight, new technology material outdoor .
