The roof covers of padel court is designed by our architectural structural design department to take into account the extreme outdoor weather.
Scientific and safe structural design, coupled with outdoor durable materials,
Raw Materials :
H-shaped steel structures , PVDF MembraneMinimum order :
1 setPayment :
TT or others paymentProduct Origin :
Hefei City, ChinaColor :
Blue, Black, White etcShipping Port :
China PortLead Time :
8-10 DaysPadel Court Size :
22*11m

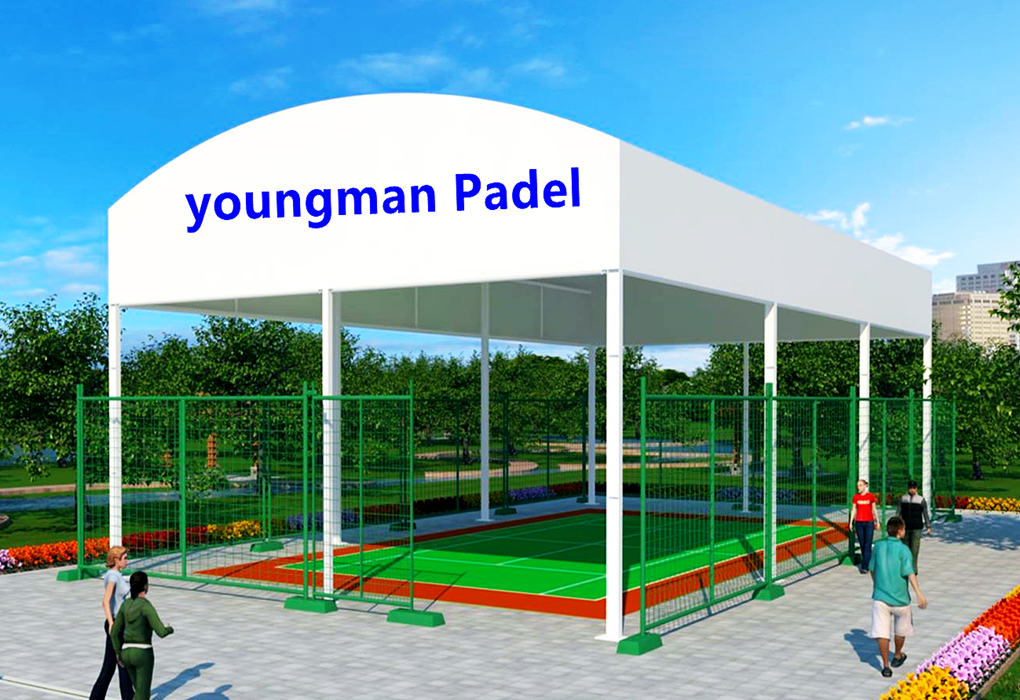

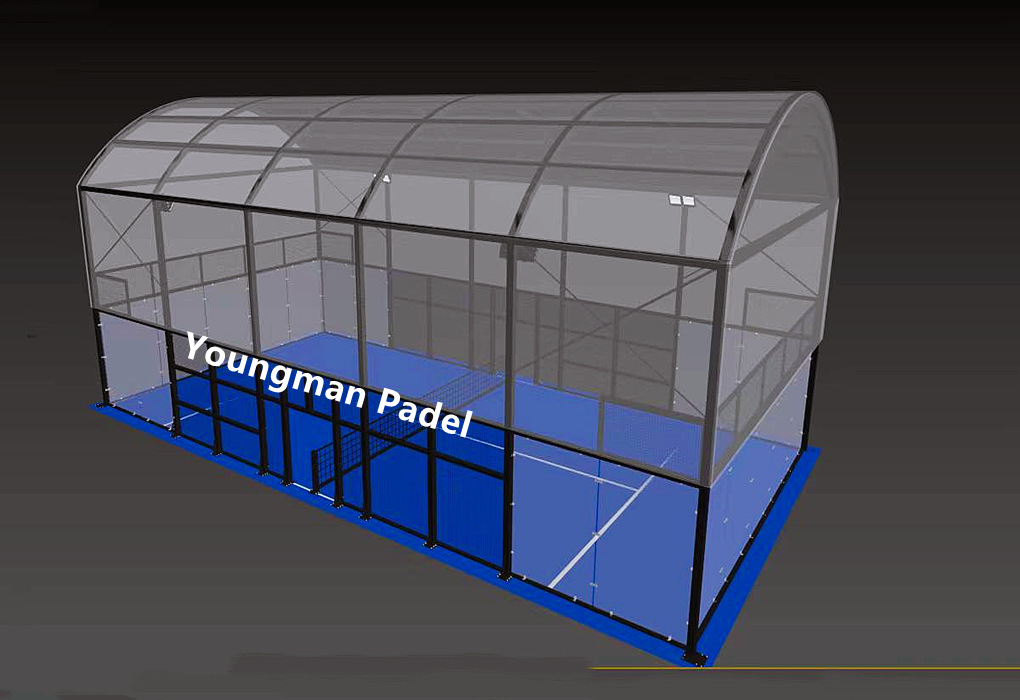

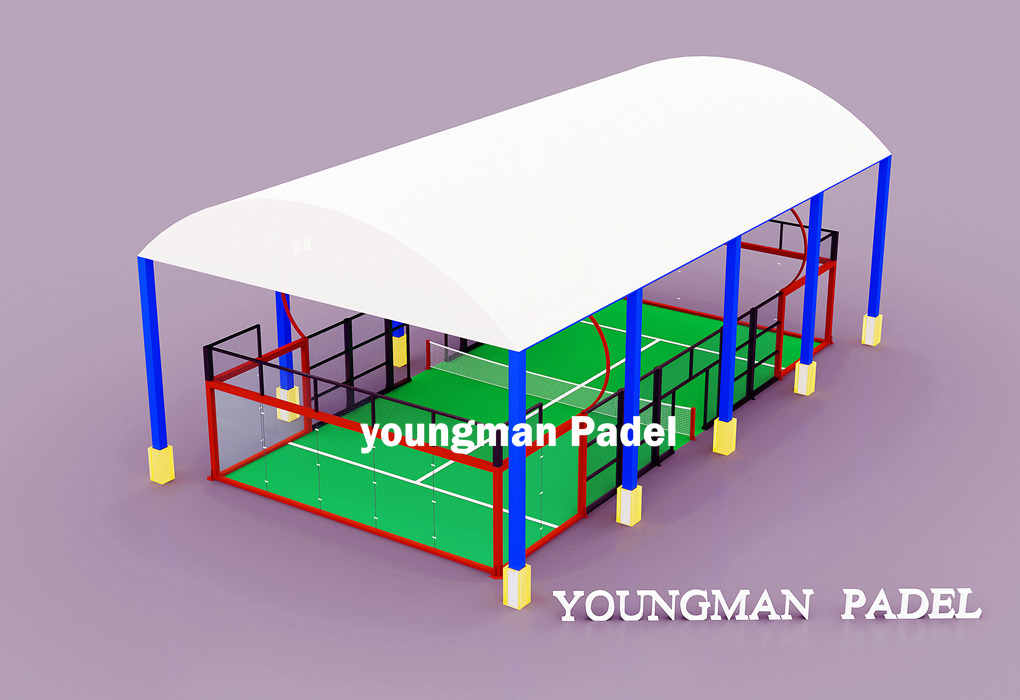

This padel court covers is designed according to outdoor architectural designers and is specially customized for paddle tennis courts.
The padel roof size is: 22*11 meters, the column height is 7 meters, and the arc top height is 8.5 meters.

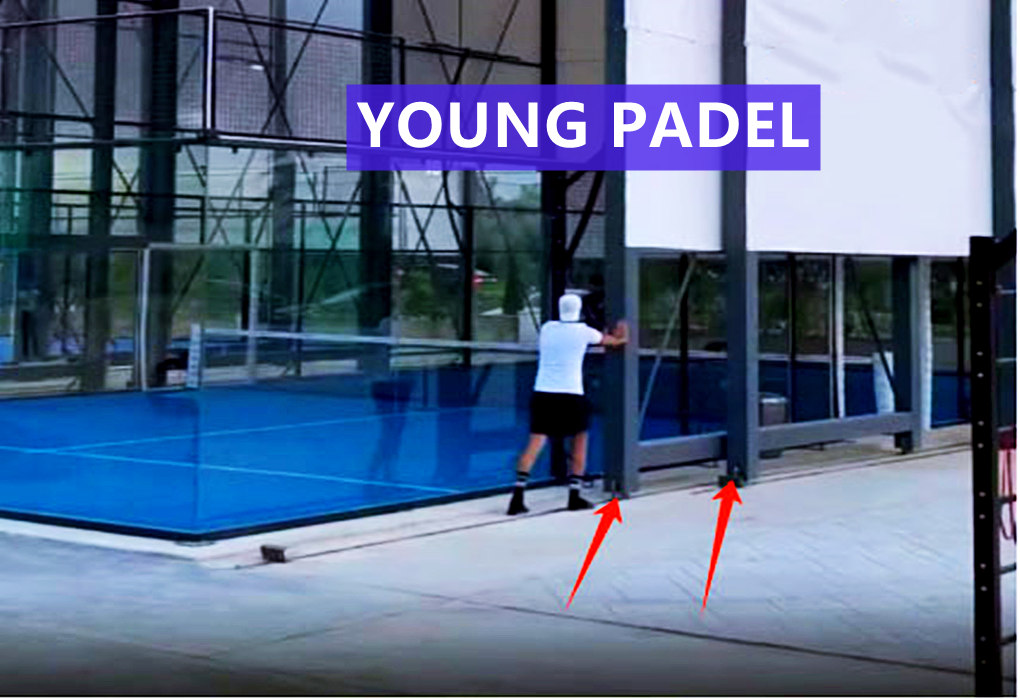

All 12 columns are H-shaped steel structures, and the ground fixation method is underground concrete embedded parts.

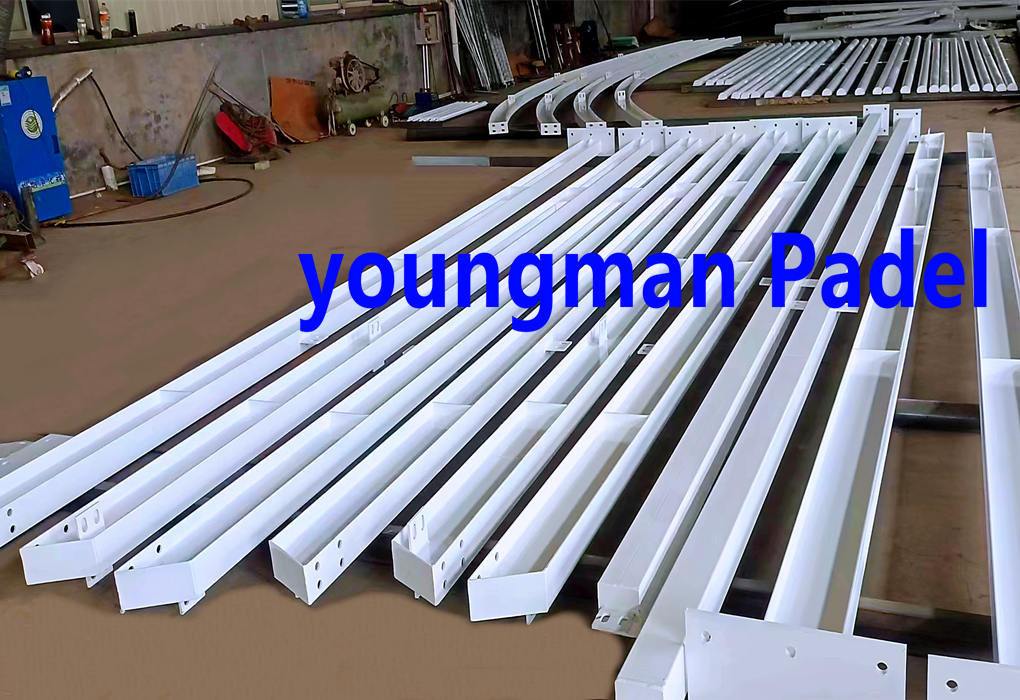

Column size H200-120*6*8mm, column height: 7M.
Top arc beam: H-Shape curved beam structural , size H200-120*6*8mm,
Top height after installation: 8.5 meters. Connecting crossbars: 114x3mm,
Padel Cover Membrane material: PVDF self-cleaning film, anti-flame retardant.
Weight: 1250g white architectural membrane material,
Color: white. Colors can be customized according to customer needs.
Concrete underground embedded parts: flange size: 35*40cm, reinforcing bars: 18mm*500mm steel bars*6 sets.
Fix screws: All made of 304 stainless steel. No rust for outdoor use,
