Customized Retractable Padel Courts Roof Cover China Manufacturers

we designed and developed an automatically open and close Retractable padel court roof covers.

In order to further improve the outdoor environment and comfortable experience of the padel tennis courts,

The overall metal frame structure system makes the roof more resistant to wind loads outdoors,

and the sealed design keeps the court from being hot in summer and cold from rain and snow in winter,

providing a more comfortable environment for padel tennis lovers.

This design can help paddle tennis court maintenance and extend the service life of the court.

The court is protected from rain and moisture in rainy and snowy weather,

and allows the sun to dry and shine on the interior of the court on sunny days.

This padel retractable roof stadiums is welcomed by all countries over the world.

Steel Structural Frame System:

4 corner columns + 4 door frame columns, 8 columns are made of reinforced high quality steel pipe: 150*150*4.75 mm,

Lamp post: Material: Q235 steel,Size: 150mm*100mm*4.75mm, Length: 6m

10m side upper and lower beams:Material: Q235 steel,
Size: 100mm*150mm*3mm, Upper bar: 100*150*4000mm*4 pcs
lower bar: 50*100*4000mm*4pcs, Length: 4m.

Mesh Column+gate column: Material: Q235 steel,
 Size：100mm*50mm*3mm, Length：3m.

Mesh Fence: Material: Q235 steel, Size：1m*2m.
Mesh diameter: 4mm. Mesh frame: 30mm*50mm*2mm.

 Tennis Net Post: Height：1m Column, size：100mm*100mm*3mm.

Padel Retractable Roof Sliding Structure：

Roof Fabric: 650g PVC knife scraper cloth,white translucent.

Tent sliding pole: 76 round tube*2mm.

Beam Rail: H shape steel beam track 100*100H.

Skeleton Beam: 50×50*2mm square tube.

skeleton arc top: 25*50*2mm Steel Tube.

Motor : Made in Taiwan.

Padel Courts Accessories:

1. Float Tempered Glass:

European Standard EN 12150-1,

Certificate：CE, SGCC ,IGCC, ISO ,CSI, SAI Global, AS/NZS4666, CCC ,

2995*1995mm*18 pics ,Thickness 12 mm .

1.  Use the best float glass as raw material.

2.  Every production process has quality inspection.

3. Powerful production capacity. 60% of our production machines are imported from world-class famous brands in Europe.

For example, cutting machines and polishing machines from Italy (Intermac, Bavelloni), cleaning machines from Germany (Benteler),

tempering ovens from Finland (Glaston, Tamglass), fully-smart glass production system from Austria(LiSEC).

The remaining 40% of our machines are from the best China brands, such as GoLive, TCME, Jinglass.

Daily production capacity of tempered glass is more than 10000 sqm.

4. Excellent polishing edge and countersunk hole, no scratch or chip on glass surface.

   They can not only bring beautiful appearance, but also further enhance the strength of tempered glass.

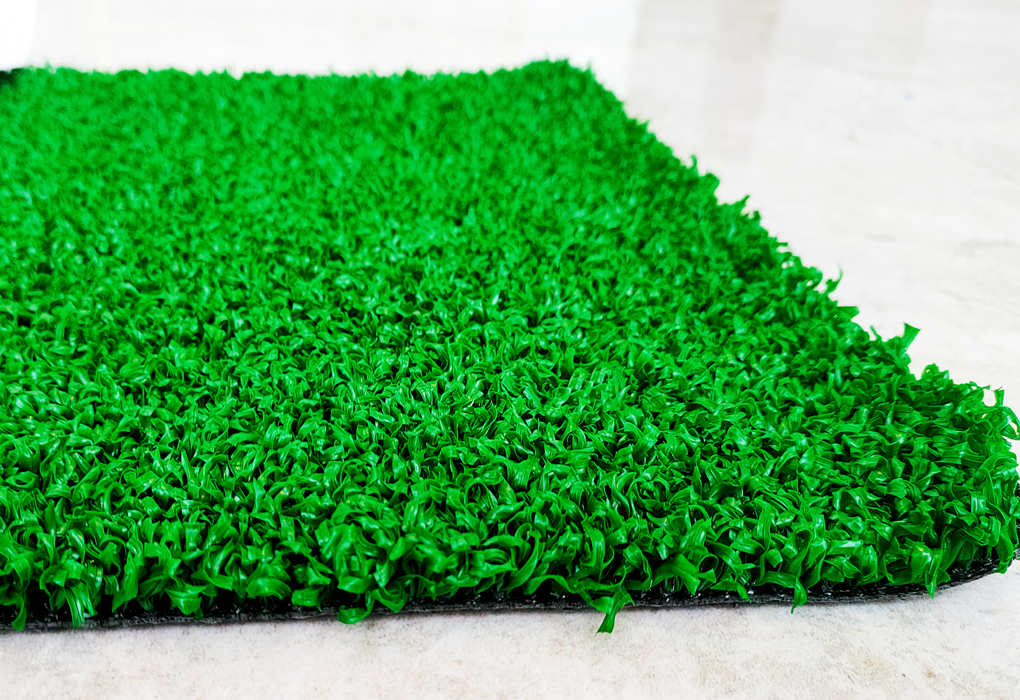

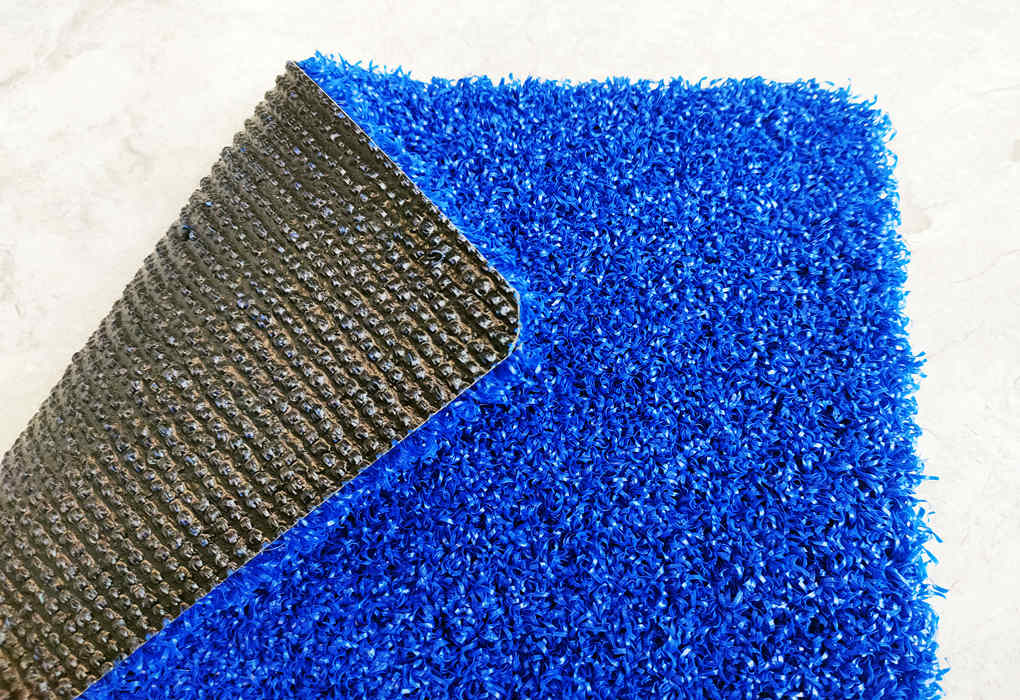

 Reinforced monofilament Artificial Grass：

Density: 63000 / m²,    Height: 12 mm.

Grass silk kind: 10000 Dtex , Color: Blue or Green

Guage Inch: 3/16  , Turf Backing: PP Net+PU

  Grass Passed Certificate:

   CE , ROHS , GB/T 21604-2008 (Skin irritation test)

   GB 21510-2008 (Antibacterial and Antifungal Testing)

   Lisport (Wear-resistant 150,000 weeks )

   SGS (Resist UVA5000h) ,  GBT20394—2013 (Prevent Burn Test) .

   REACH205 (European standard )
