Automatic Padel Court Retractable Roof Cover System Manufacturers

This high-tech Retractable roof is specially designed for padel court , giving padel players a comfortable experience.

Our automatic Retractable roof cover system padel court was developed and designed by our structural designers based on the development needs of the padel tennis market. The overall frame structure system is used to make the retractable roof paddle tennis court stronger and safer outdoors. Whether it is dark during the day, rainy and snowy weather in winter, or hot and high temperatures in summer, padel players can train and compete comfortably at any time, regardless of the weather Influence.

Our roof is made of white light-transmitting PVC membrane cloth. When the roof is closed, light can penetrate into the padel courts. If rain or snow in cold winter, the roof can be closed, allowing players to play indoors .when the sun shines on a sunny day. sunlight and wind can disinfect and dry the entire inner court if you open the roof. Let players experience a cleaner padel court environment.

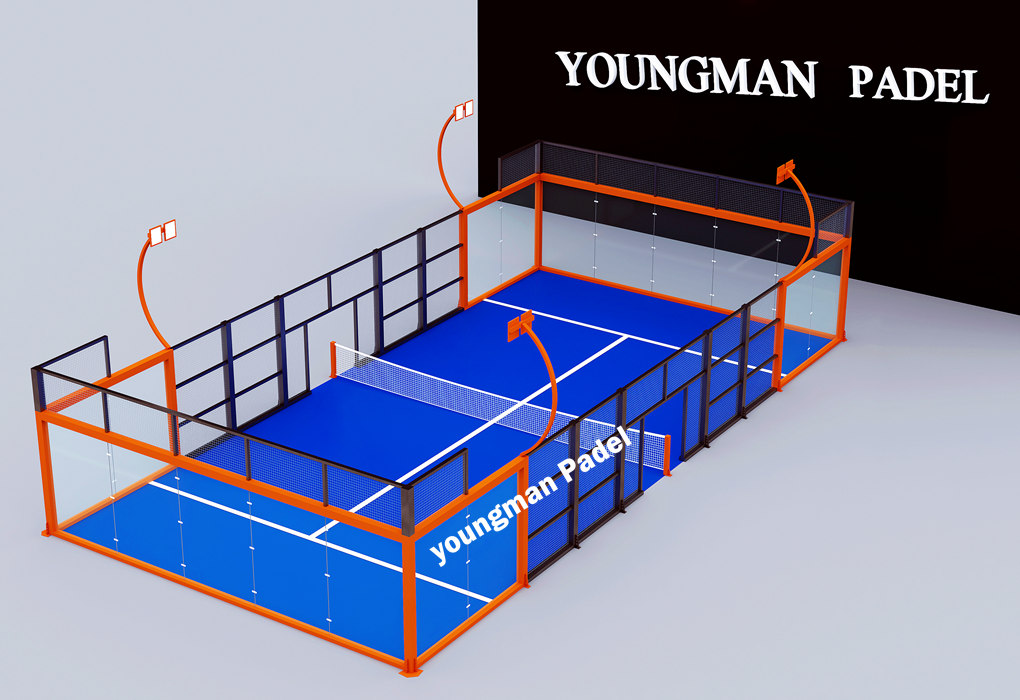

Our paddle tennis court and electric retractable roof are an integrated structure. The roof and the court use the same pillars.

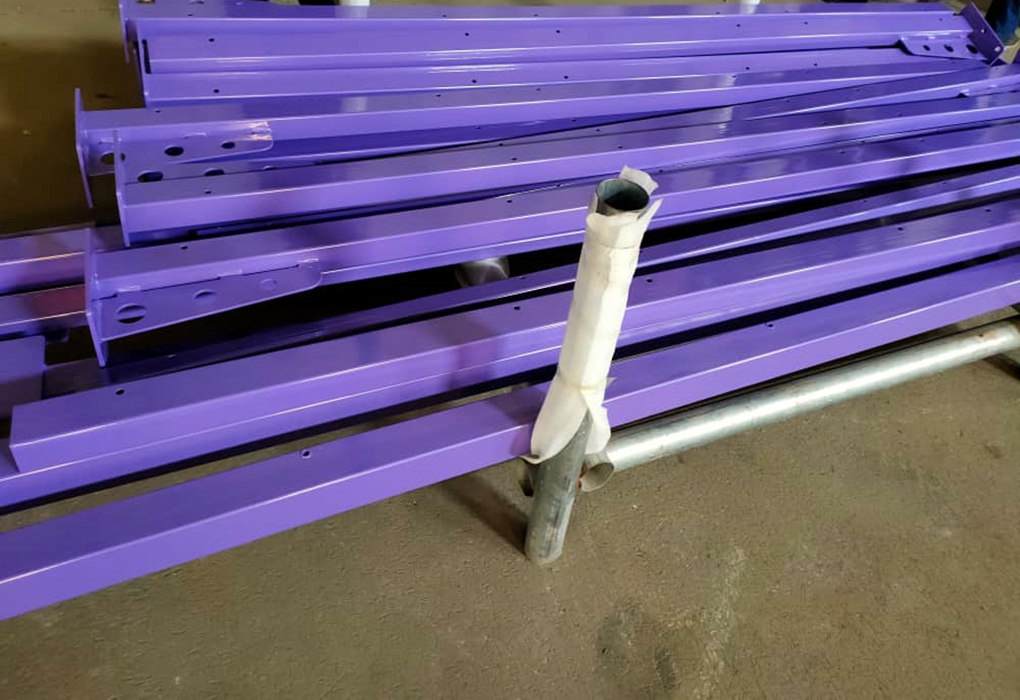

Steel Structural Frame System:

4 corner columns + 4 door frame columns, 8 columns are made of reinforced high quality steel pipe: 150*150*4.75 mm,

Lamp post: Material: Q235 steel,Size: 150mm*100mm*4.75mm, Length: 6m

10m side upper and lower beams:Material: Q235 steel,
Size: 100mm*150mm*3mm, Upper bar: 100*150*4000mm*4 pcs
lower bar: 50*100*4000mm*4pcs, Length: 4m.

Mesh Column+gate column: Material: Q235 steel,
 Size：100mm*50mm*3mm, Length：3m.

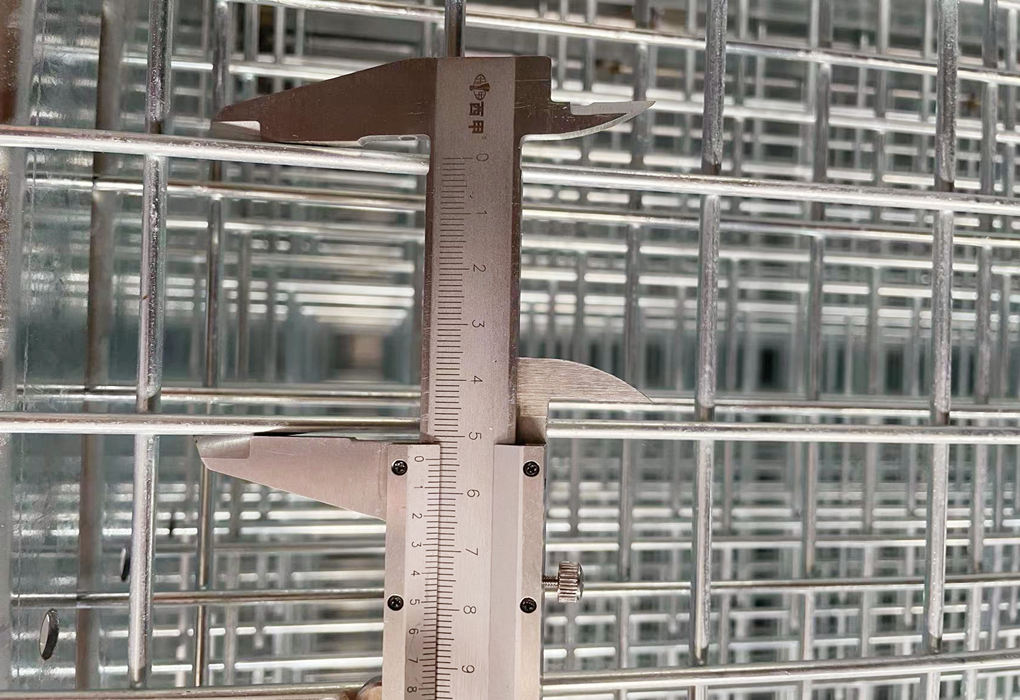

Mesh Fence: Material: Q235 steel, Size：1m*2m.
Mesh diameter: 4mm. Mesh frame: 30mm*50mm*2mm.

 Tennis Net Post: Height：1m Column, size：100mm*100mm*3mm.

Retractable Roof Sliding Structure：

Roof Fabric: 650g PVC knife scraper cloth,white translucent.

Tent sliding pole: 76 round tube*2mm.

Beam Rail: H shape steel beam track 100*100H.

Skeleton Beam: 50×50*2mm square tube.

skeleton arc top: 25*50*2mm Steel Tube.

Motor : Made in Taiwan.

Padel Tennis Court Accessories:

1.Glass: 12 mm Thick Tempered Glass. Color: transparent,  Size:1995mm*2995mm*18pcs .

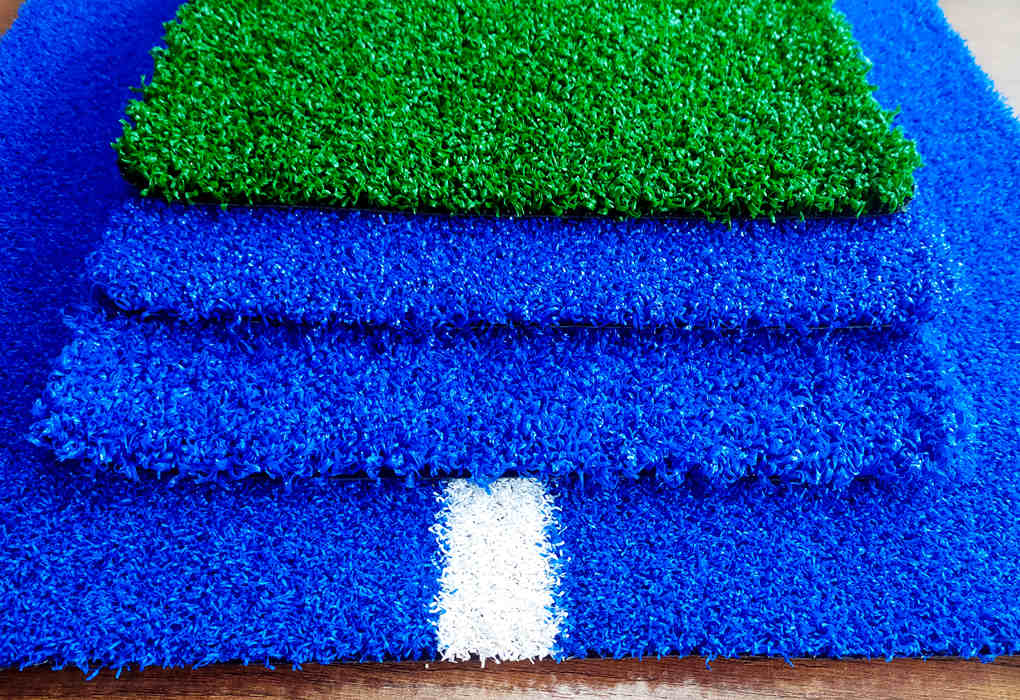

2. Artificial Turf:

   3 Rolls (209 m²), Height: 12 mm, Gauge Inch: 3/16.

   Dtex: 9500,Backing: PU, Density: 63000 /m².

3. LED Light System:

      8 sets IP65 Water-proof LED Lights,Color: Black,
Power: 200W, Lumen:30000.

4. Tennis Net:

    Height: 100cm, Material: PP ,Thickness: 3mm,Mesh: 45mm.Color: black.
