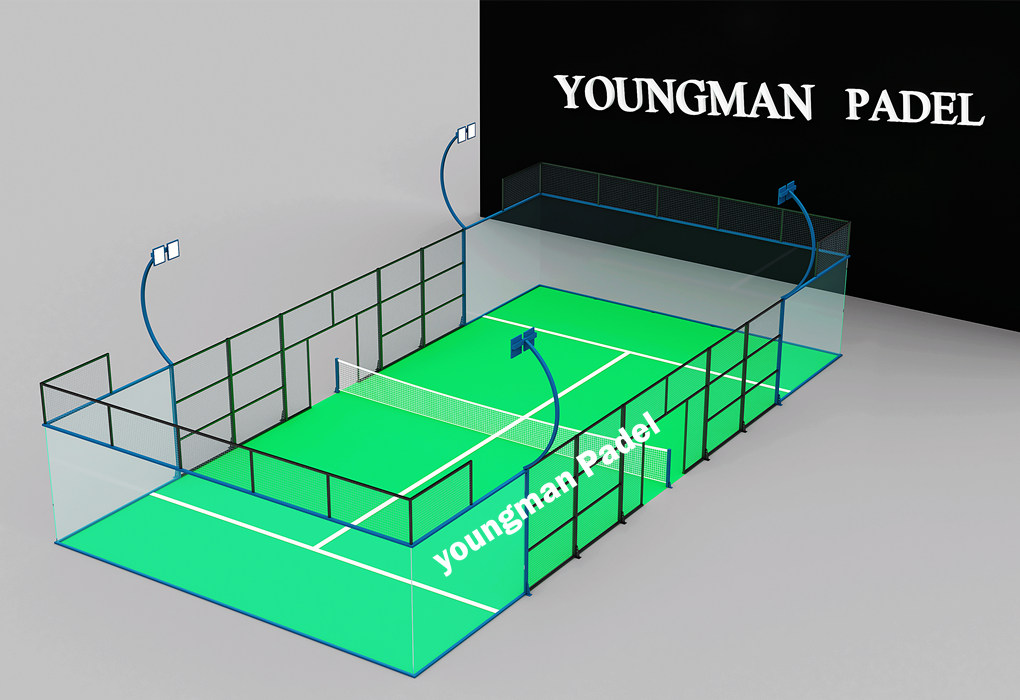

Full Panoramic Structure WPT Padel Courts From China

International standard size: The 20-meter-long and 10-meter-wide WPT full panoramic padel court was originally created in Spain. We strictly abide by the WPT and FIP dimensions, incorporate Chinese design elements, and collect high-quality and cost-effective raw materials from China. then mass produced in China.

Since 2010, we have successfully sold more than 2,000 sets of Paddle Tennis Courts to more than 50 countries around the world. South American countries: Uruguay, Chile, Argentina, Venezuela, Mexico, Panama, etc., Middle Eastern countries: Qatar, Saudi Arabia, Oman, etc., as well as the United States, Canada, Indonesia, etc.

 Full Panoramic Padel Court components: tempered glass, hot-dip galvanized steel pipe, hot-dip galvanized mesh, artificial turf, LED lights, 304 stainless steel screws, accessories and links, tennis net,

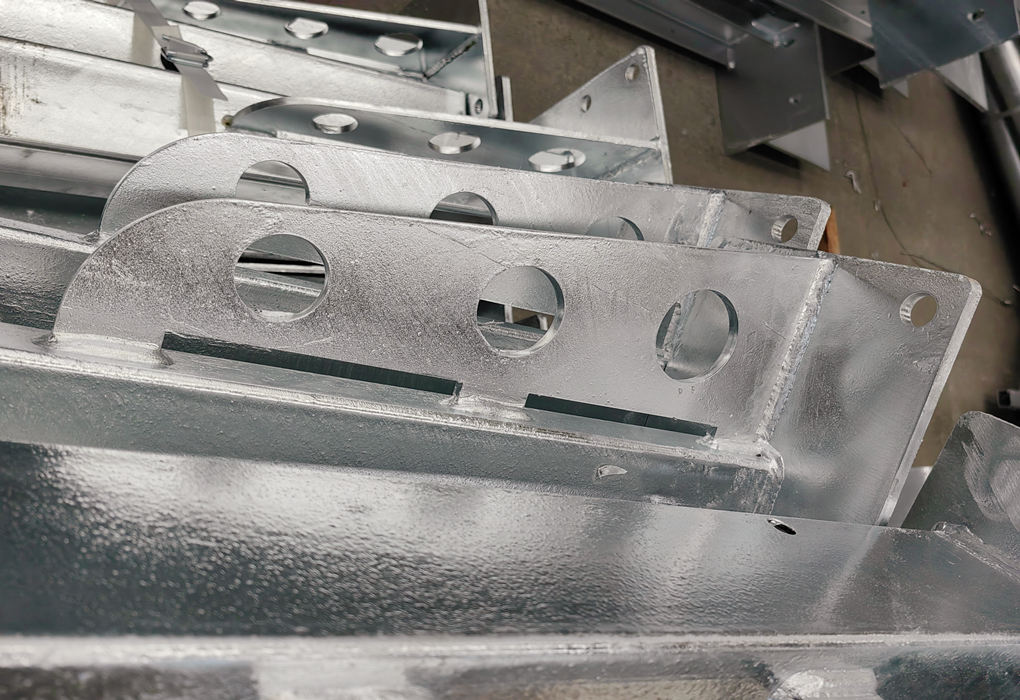

Columns ,Crossbars and Mesh Fence are use High quality Hot-Dip Galvanized Steel,

Hot-dip Galvanized High Quality Steel has the advantage of anti-corrosion, not fall off, not rust after long time Outdoor use.

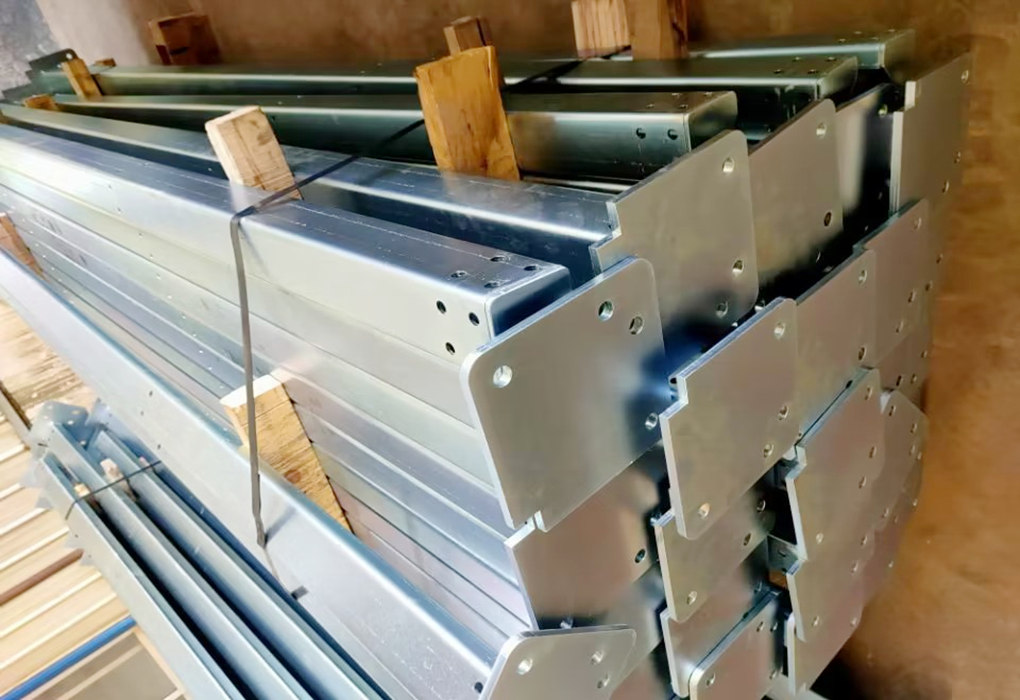

Hot-Dip Galvanized Lamp Columns:

Steel pipe size: 100*100mm*3000mm.

Lamp Post steel square pipe: 40*80*3000mm.

The Beams on the 10-meter side： 50*100mm*6000mm.

The Beams on the 20-meter side:  50*100mm*4000mm.

Upper and lower corner joint Crossbars: 50*100mm*2000mm*2000mm.

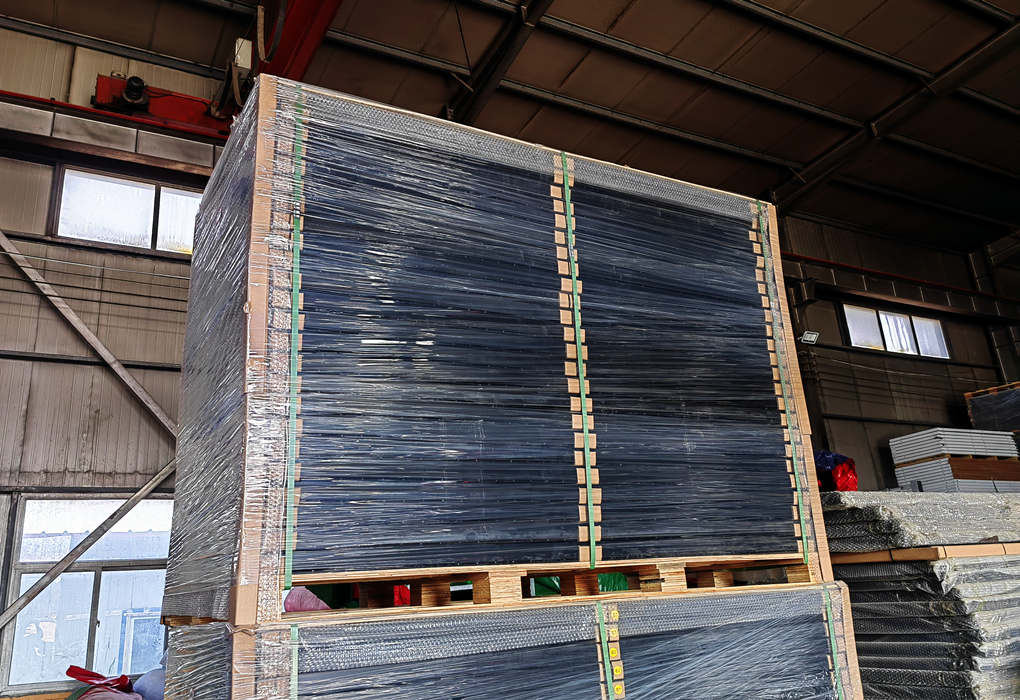

Mesh Frame Post: 50*100mm*3000mm. Mesh frame size: 1000*2000mm,
Mesh Frame tube: 50*30*2.5mm, Wire Mesh: 50*50*4mm.

Tennis post: 100mm*50mm*3mm.

Float Tempered Glass:

2995*1995mm*18 pics, Thickness 12 mm .

European Standard EN 12150-1,

 Passed Certificate：CE, SGCC ,IGCC, ISO ,CSI, SAI Global, AS/NZS4666, CCC ,

1.  Use the best float glass as raw material.

2.  Every production process has quality inspection.

3. Powerful production capacity. 60% of our production machines are imported from world-class famous brands in Europe. For example, cutting machines and polishing machines from Italy (Intermac, Bavelloni), cleaning machines from Germany (Benteler), tempering ovens from Finland (Glaston, Tamglass), fully-smart glass production system from Austria(LiSEC). The remaining 40% of our machines are from the best China brands, such as GoLive, TCME, Jinglass. Daily production capacity of tempered glass is more than 10000 sqm.

4. Excellent polishing edge and countersunk hole, no scratch or chip on glass surface. They can not only bring beautiful appearance, but also further enhance the strength of tempered glass.

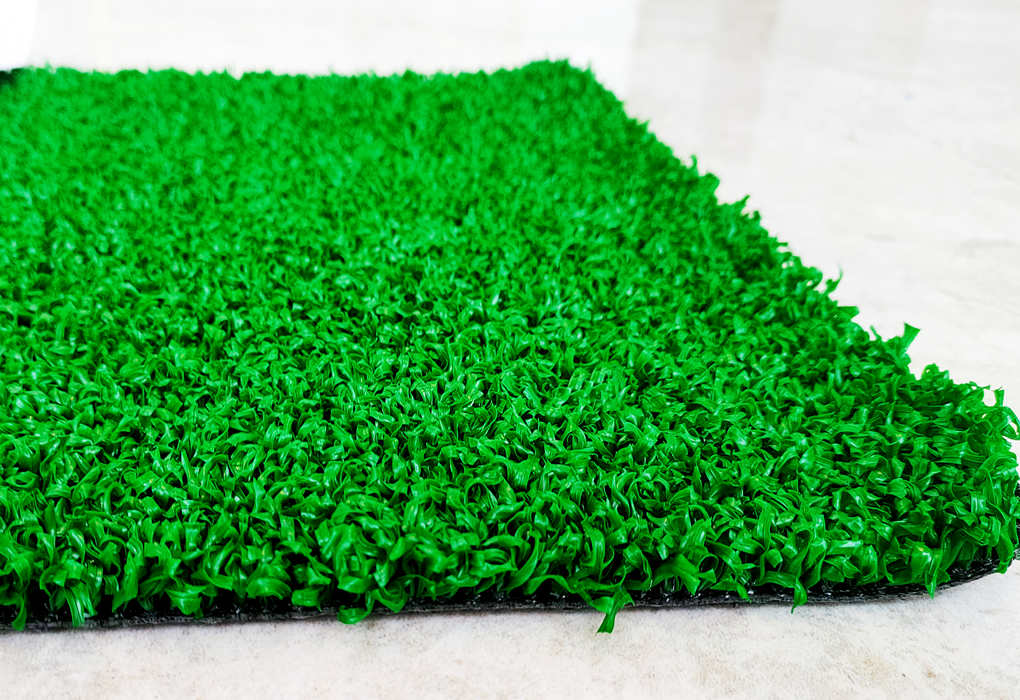

Reinforced monofilament Padel Artificial Grass:

Certificate:  CE , ROHS , GB/T 21604-2008 (Skin irritation test).

   GB 21510-2008 (Antibacterial and Antifungal Testing).

   Lisport (Wear-resistant 150,000 weeks ).

   SGS (Resist UVA5000h) ,  GBT20394—2013 (Prevent Burn Test) .

   REACH205 (European standard ).

   GBT20394—2019   All test ,   GB36246-2018  All test.

Artificial curled grass : standard size roll 4000 mm/2000 mm.

Length: 20000 mm,   Height: 12 mm.

Grass silk kind: 9000 Dtex ,  Color: Blue or Green.

Guage Inch: 3/16,  Turf Backing: SBR.

Density: Turf density is 58800 / m².

Standard: Comply with GB/T 20394-2006 (Sports Artificial Turf premium product ) . Color: blue, green (customizable)

This model grass lawn is one of the most high-end products, Which is special manufacturing for Padel Court, we are exported to Europe, such as the United Kingdom, France, Italy, Spain, etc. this grass silk material is high linear PE plastic particles imported from the United States, using KDK With special craftsmanship, the grass silk keeps the color and curvature for a long time to extend the life. The base fabric adopts double-layer twill weave, which is different from ordinary warp and weft knitting. The base fabric has stronger tear resistance and reduces the risk of wrinkles caused by thick grass yarns and high density. At the same time, the back glue is coated with polyurethane material. Poisonous and environmentally friendly, no mold or slag, customers can use it with more peace of mind. The most important thing is that when the height of the grass is 12mm, the grass can be locked to the greatest extent and the service life is prolonged.

 LED Lights:  8 Sets LED lights with China Famous Brand,

Each Set power is 200 W. IP 65 Waterproof for outdoor use.

Ultra-thin, light weight, convenient for high-altitude installation.Stable, firm and safe.

 Screws, accessories and links: All materials are 304 stainless steel, which will not rust and not rot in the long-term outdoor rain. Safe and secure. The stainless steel material has strong hardness, no deformation and beautiful appearance.

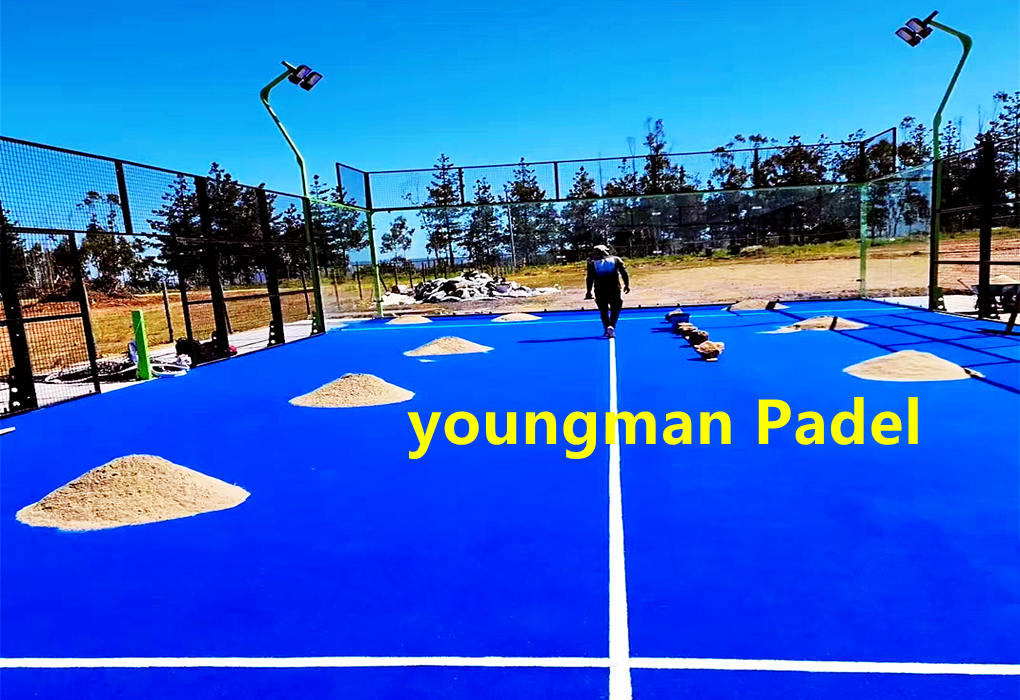

 Quartz Sands: Color: white, 80-100 mesh, each Paddle Tennis Court needs about 900 Kgs quartz sand, the quartz sand must be washed with water and then dried in the sun. Then spread it on the artificial turf.
