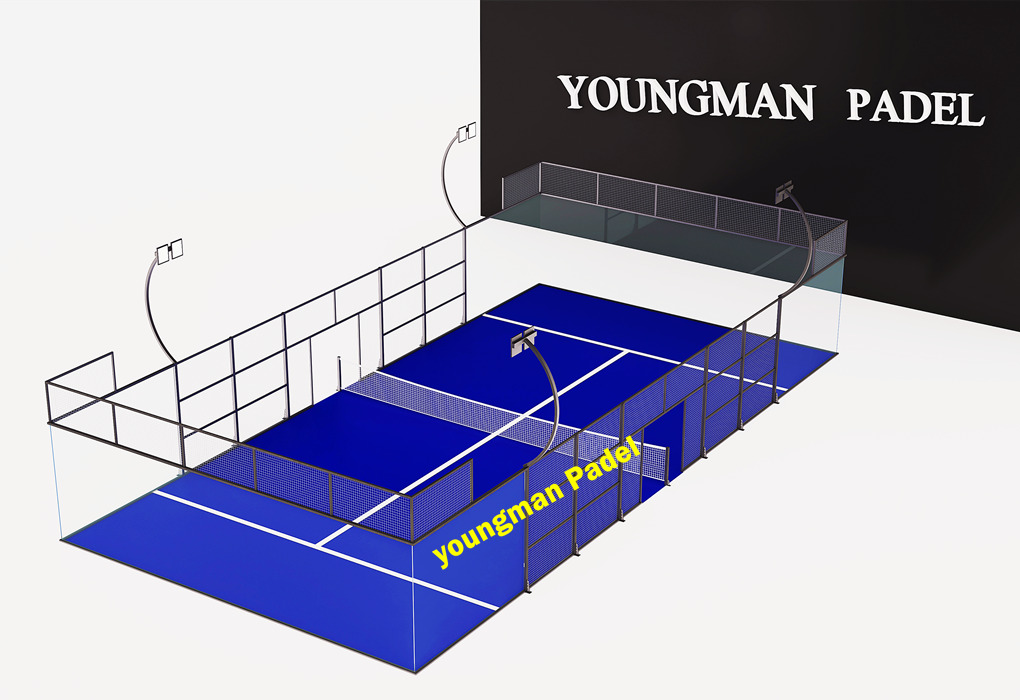

Aesthetic Design Super Panoramic Padel Court Without Columns

Our this full Panoramic Padel Court use high quality materials and state-of-the-art techniques, creates Super Courts that meet the most rigorous industry standards. The artificial turf flooring offers excellent traction and consistent ball bounce, allowing padel players to show their best performance.

Stadium components: hot-dip galvanized steel pipe structural system, artificial turf flooring, wire mesh, anti-vertigo LED lights, Tennis Net. Tempered glass, etc.

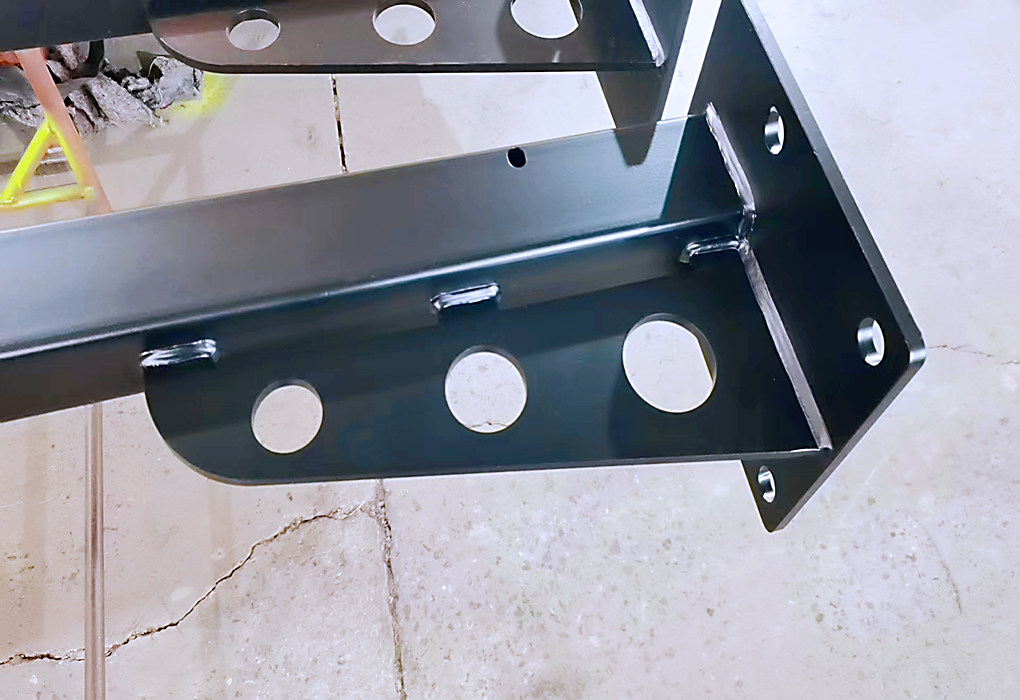

Metal Structure Composition:

Hot-Dip Galvanized Lamp Columns:

Steel pipe size: 100*100mm*3000mm.

Lamp Post steel square pipe: 40*80*3000mm.

The Beams on the 10-meter side： 50*100mm*6000mm.

The Beams on the 20-meter side:  50*100mm*4000mm.

Upper and lower corner joint Crossbars: 50*100mm*2000mm*2000mm.

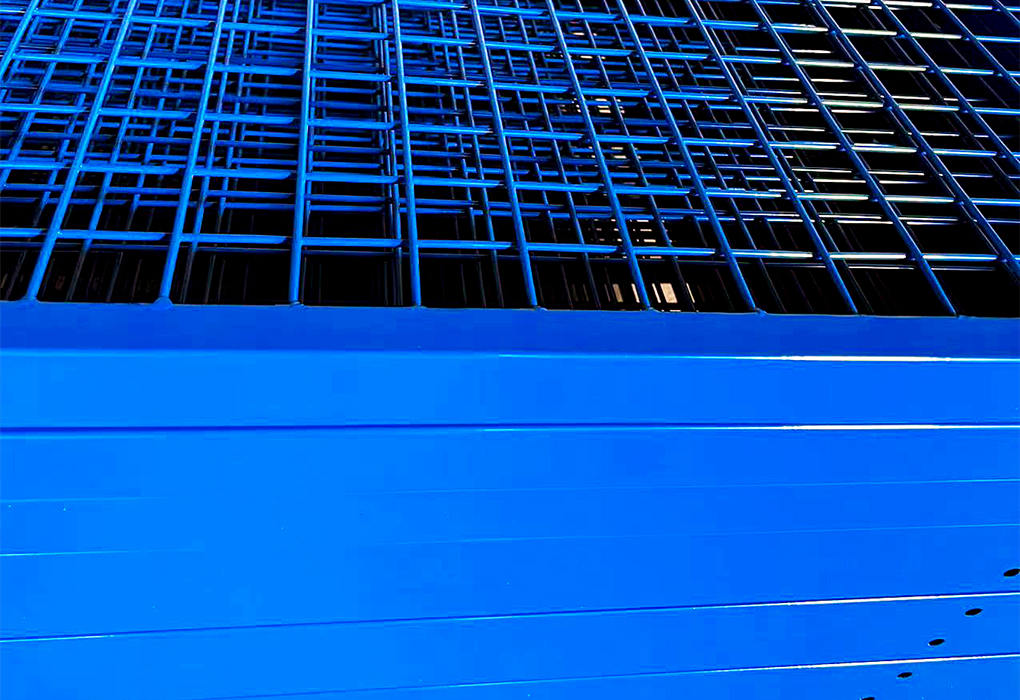

Mesh Frame Post: 50*100mm*3000mm. Mesh frame size: 1000*2000mm,
Mesh Frame tube: 50*30*2.5mm, Wire Mesh: 50*50*4mm.

Tennis post: 100mm*50mm*3mm.

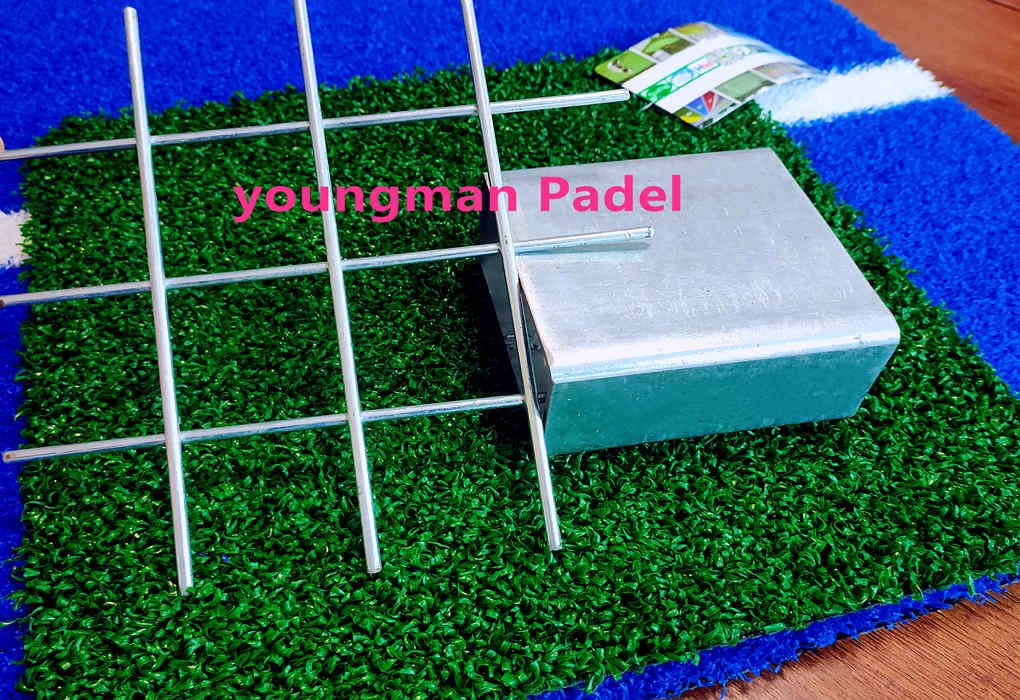

Padel Artificial Turf : Reinforced monofilament Grass

Density: 58800 / m²,  Height: 12 mm.

Grass silk : 9000 Dtex , Color:  Blue or Green.

Guage Inch: 3/16 ,  Turf Backing:  PP Net+SBR .

 Passed : CE , ROHS , GB/T 21604-2008 (Skin irritation test).

                 GB 21510-2008 (Antibacterial and Antifungal Testing) .

                  Lisport (Wear-resistant 150,000 weeks ) .

   SGS (Resist UVA5000h) ,  GBT20394—2013 (Prevent Burn Test) .

   REACH205 (European standard ).

white grass is woven directly into the whole artificial turf as a whole. The customer does not need to waste time on manual splicing by glue. The white grass and blue grass of other companies are separated, and customers need to waste time to splice them manually. Our artificial turf can be tiled directly on the padel court

Padel Tennis Net:

The specifications of the tennis net are 10 meters x 0.92 meters, Net Mesh distance: 4*4 cm, thick steel wire tension rope, black knotted network cable, and PVC white edging. The network cable is made of anti-ultraviolet and anti-aging materials.

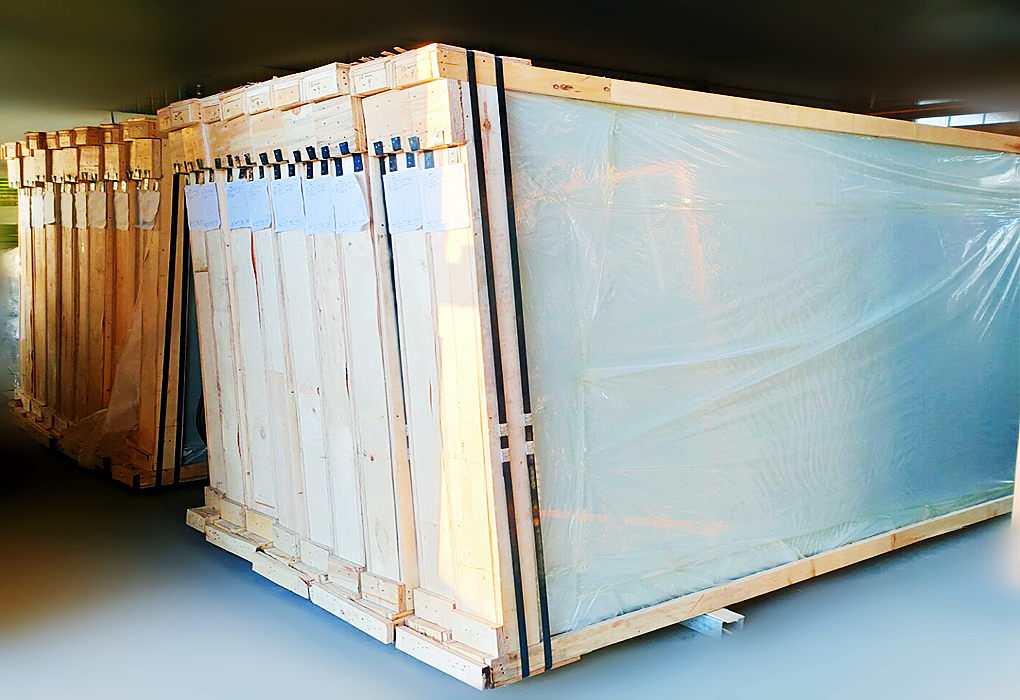

Explosion-Proof Tempered Glass:

1.  Use the best float glass as raw material.

2.  Every production process has quality inspection.

3. Powerful production capacity. 60% of our production machines are imported from world-class famous brands in Europe. For example, cutting machines and polishing machines from Italy (Intermac, Bavelloni), cleaning machines from Germany (Benteler), tempering ovens from Finland (Glaston, Tamglass), fully-smart glass production system from Austria(LiSEC). The remaining 40% of our machines are from the best China brands, such as GoLive, TCME, Jinglass. Daily production capacity of tempered glass is more than 10000 sqm.

4. Excellent polishing edge and countersunk hole, no scratch or chip on glass surface. They can not only bring beautiful appearance, but also further enhance the strength of tempered glass.

1 piece of glass with 8 countersunk holes and finely ground edges.

 12mm Thickness , Dimension：2995*1995mm, 1Set Padel Court with 18 pieces Tempered Glass.

Certificate：CE, CCC, SGCC ,IGCC, ISO ,CSI, SAI Global, AS/NZS4666.

   Complies with European Standard EN 12150-1 .

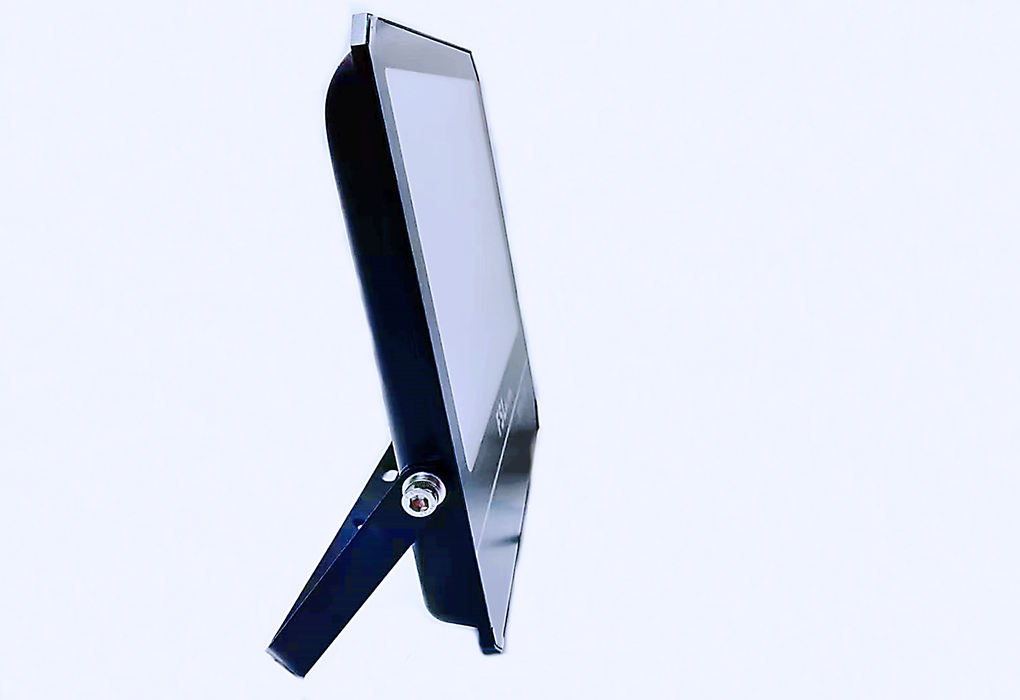

LED Lights :

        8 groups LED lights with China Famous Brand, each Set power is 200 W.

 IP 65 Waterproof .The light column is embedded inside the fence.

Height of the light column is 6000 mm, illumination reaches 300 Lux.

The shell is thin, light in weight, new technology material outdoor

IP65 waterproof LED light. Easy to install. It is convenient to adjust

the irradiation direction.
