International Brand Adidas Design Padel Court in China

The international Adidas Super Panoramic Padel Courts consists of 12 reinforced columns forming a stable structural core. 18 pieces of tempered glass made of special material form a conjoined wall, and the strength of the glass itself can provide great support. The upper and lower beams of the glass area are composed of 100*50*3mm hot-dip galvanized square tupes. The surface of the steel pipe is coated with epoxy polyester resin and then baked in a high-temperature furnace of 180-220 degrees. All accessories and screws are made of 304 stainless steel, it can not rust for life, It is strong and does not deform, the crafts has a beautiful appearance.

      Full Panoramic Padel Court Columns:

Hot-Dip Galvanized Lamp Columns:

Steel pipe size: 100*100mm*3000mm.

Lamp Post steel square pipe: 40*80*3000mm.

The Beams on the 10-meter side： 50*100mm*6000mm.

The Beams on the 20-meter side:  50*100mm*4000mm.

Upper and lower corner joint Crossbars: 50*100mm*2000mm*2000mm.

Mesh Frame Post: 50*100mm*3000mm. Mesh frame size: 1000*2000mm,
Mesh Frame tube: 50*30*2.5mm, Wire Mesh: 50*50*4mm.

Tennis post: 100mm*50mm*3mm.

All our steel pipes have been derusted, polished, finely ground, and shot blasted.then We use advanced high-tech spraying production lines. The first step: all steel pipes enter the high-temperature furnace for surface dust removal and drying of surface moisture. The second step: use high-quality outdoor special powder for classic powder spraying, and use automated manipulators to spray to make the surface plastic. The powder coating is even and smooth. After being baked at a high temperature of 180-220 degrees, the surface powder adsorption force is stronger, and the outdoor service life is more than 15 years.

Adidas Customized Tempered Glass

1 piece of glass with 8 countersunk holes and finely ground edges. Secured by flush screws, with plastic washer and locknut for blocking and protection. Clamped on neoprene back.

 12mm Thickness , Dimension：2995*1995mm, 1Set Padel Court with 18 pieces Tempered Glass.

Certificate：CE, CCC, SGCC ,IGCC, ISO ,CSI, SAI Global, AS/NZS4666.

Complies with European Standard EN 12150-1 .

Strong production capacity. Our factory has advanced equipment imported from Europe and professional technicians. It can produce more than 10,000 square meters of tempered glass every day.

Heat-resistant function. It is 5 times heat resistant than float glass and can withstand sudden temperature differences of up to 300 degrees. This makes it safer in the event of a fire.

LED  illumination:

    8 groups LED lights with China Famous Brand, each Set power is 200 W.

 IP 65 Waterproof .The light column is embedded inside the fence.

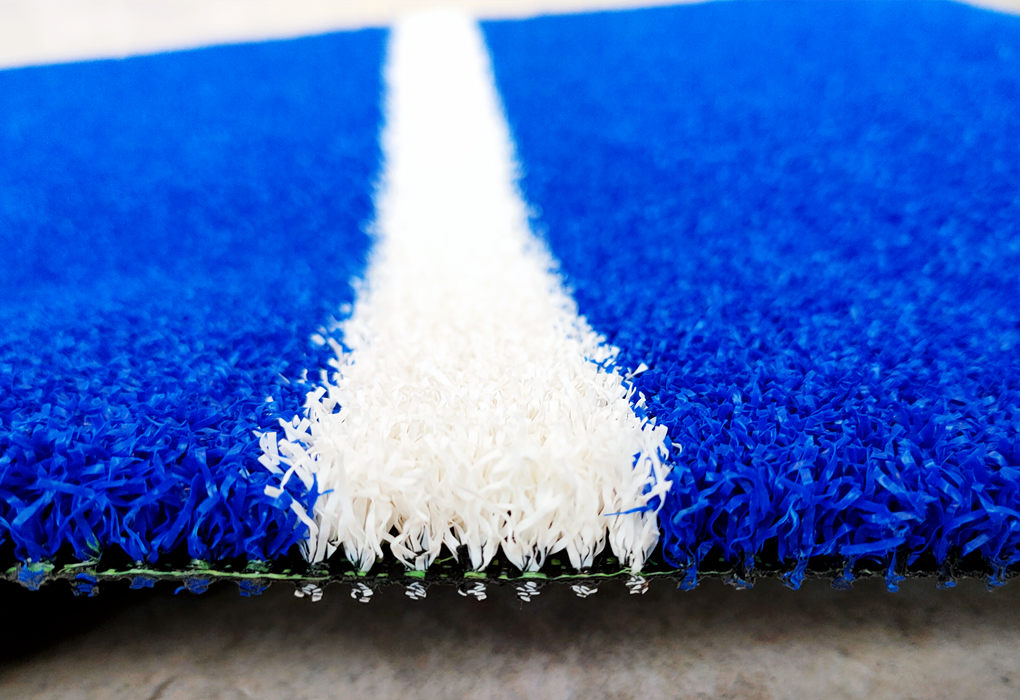

Mondo monofilament reinforced Padel Artificial Turf is officially designated by FIP Court.

YATN CONTENT: 100% U.V.RESISTANT  PE

YARN WEIGHT: >＝1600g/m², 30sticthes/10cm.

 Height: 12 mm ,  Density: 63000 / m²

Grass silk : 10000 Dtex , Guage Inch: 3/16 ,

Turf Backing: PP Net+PU,

Color: blue, green, gray and purple

   The Grass has non-slip design,100% UV resistance and anti-aging composition. Longer service life outdoors .
