Spain Barcelona Padel Court Manufacturers With WPT Dimension

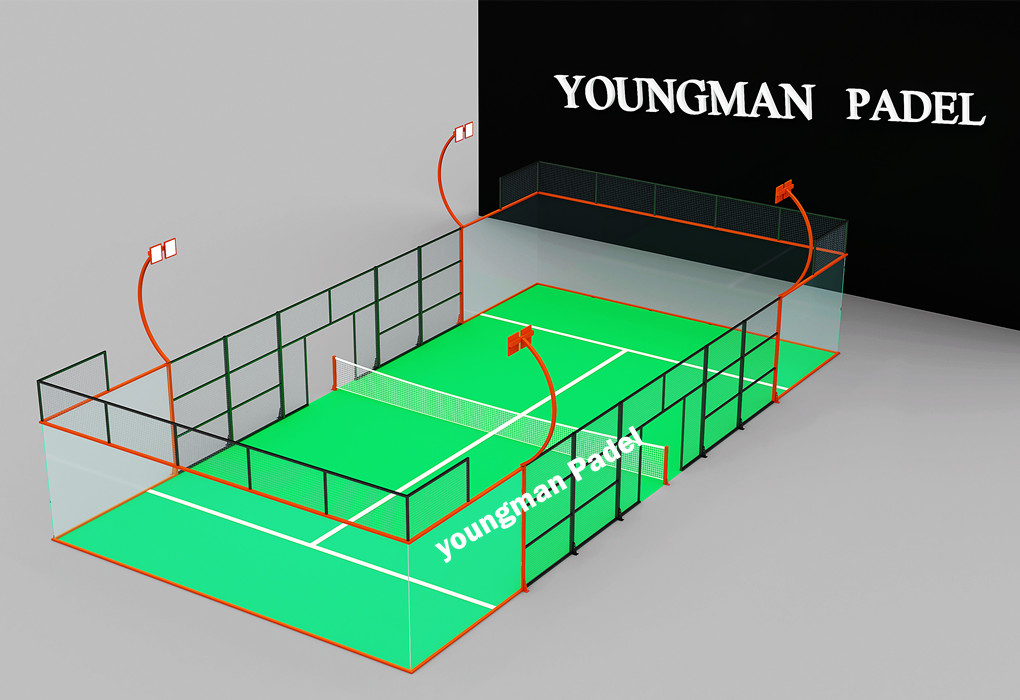

This model super view panoramic padel court without corner posts was designed by a Spanish designer. The thin and small steel structure and glass padel stadium will shock you and broaden your horizons. Dimensions and rules comply with the regulations and requirements of FEP (Spanish Padel Federation) and FIP (International Padel Federation) .

The full panoramic court is set up according to the rules of the cricket match and the viewing perspective of the live audience. Thanks to its blue and soft artificial grass application, it provides a comfortable and safe padel experience.

High quality steel structure:

Hot-dip galvanized steel square tube frame.

Hot-dip galvanized wire mesh fence,

After rust removal and dust removal, electrostatic powder spraying and heating in an oven are used.

Then surface powder adsorption force is stronger.

12mm thickness CE certified explosion-proof tempered glass,

Monofilament artificial turf in Mondo format.

Outdoor waterproof IP65 LED lighting.

304 stainless steel screws and accessories will not rust when exposed to rain.

Hot-Dip Galvanized Lamp Columns:

Steel pipe size: 100*100mm*3000mm.

Lamp Post steel square pipe: 40*80*3000mm.

The Beams on the 10-meter side： 50*100mm*6000mm.

The Beams on the 20-meter side:  50*100mm*4000mm.

Upper and lower corner joint Crossbars: 50*100mm*2000mm*2000mm.

Mesh Frame Post: 50*100mm*3000mm. Mesh frame size: 1000*2000mm,
Mesh Frame tube: 50*30*2.5mm, Wire Mesh: 50*50*4mm.

Tennis post: 100mm*50mm*3mm.

Explosion-Proof Tempered Glass

1 piece of glass with 8 countersunk holes and finely ground edges.

 12mm Thickness , Dimension：2995*1995mm, 1Set Padel Tennis Court with 18 pieces Tempered Glass.

Certificate：CE, CCC, SGCC ,IGCC, ISO ,CSI, SAI Global, AS/NZS4666.

Complies with European Standard EN 12150-1 .

Strong production capacity. Our factory has advanced equipment imported from Europe and professional technicians. It can produce more than 10,000 square meters of tempered glass every day.

Heat-resistant function. It is 5 times heat resistant than float glass and can withstand sudden temperature differences of up to 300 degrees. This makes it safer in the event of a fire.

Curled Type Padel Artificial Turf :

  Grass Passed Certificate:

   CE , ROHS , GB/T 21604-2008 (Skin irritation test).

   GB 21510-2008 (Antibacterial and Antifungal Testing).

   Lisport (Wear-resistant 150,000 weeks ).

   SGS (Resist UVA5000h) ,  GBT20394—2013 (Prevent Burn Test) .

   REACH205 (European standard ).

   GBT20394—2019   All test ,   GB36246-2018  All test.

Artificial curled grass : standard size roll 4000 mm/2000 mm.

Length: 20000 mm,   Height: 12 mm.

Grass silk kind: 9000 Dtex ,  Color: Blue or Green.

Guage Inch: 3/16,  Turf Backing: PP Net+PU .

Density: Turf density is 63000 / m² .

Screws and Bolts:

All accessories and screws are made of 304 stainless steel, it can not rust for life, It is strong and does not deform, the crafts has a beautiful appearance

LED  illumination:

    8 groups LED lights with China Famous Brand, each Set power is 200 W.

 IP 65 Waterproof .The light column is embedded inside the fence.
