International Padel Federation Tennis Court Dimensions And Details

International Padel Federation is the official and authoritative management organization of international Padel Tennis. FIP has formal dimensions and requirements for Padel Courts used in official competitions.

  • Raw Materials :

    Glasses with countersunk holes , Artificial Grass, Metal Frame, LED Lights
  • Minimum order :

    1
  • Payment :

    TT
  • Product Origin :

    CHINA
  • Color :

    Gray, Black, Blue, Green etc
  • Shipping Port :

    China Port
  • Lead Time :

    7-10 Days
  • Padel Court Size :

    20*10m



The official FIP Padel Court Size :

 Internal dimensions of the stadium: 20 meters in length * 10 meters in width.

The external dimensions of the Padel Courts is: 20.4 meters in length * 10.4 meters in width.

For 10-meters-wide side consists of: 3m hight glass + 1m high mesh fence, total height of 4 meters. The bottom is made of 5 pieces of glass * 2 meters wide = 10 meters width total.

The top consists of 5 pieces of mesh * 2 meters = 10 meters width.

On the 20-meters-long side consists of: the two sides are composed of 4 pieces of glass at the bottom + 2 pieces of mesh on the top, and the middle is composed of a 3-meter-high mesh.

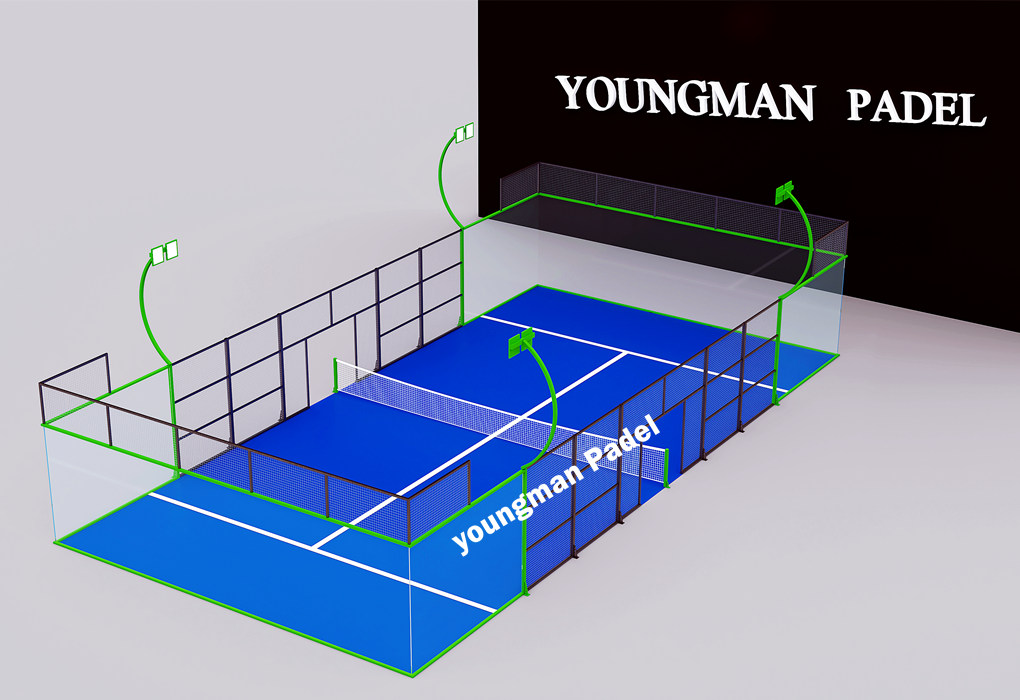

International Padel Federation Panoramic Court



This FIP model Court is suitable for senior Padel clubs and some official large-scale competitions.

There are no columns in the glass area, and the super wide field of view and landscape bring surprise and pleasure to the audience and players with a 360-degree panoramic view. Give you an immersive experience.

We have adopted a special stable overall reinforcement system. The light pole columns are reinforced with 100*100*3 mm. The upper and lower beams of the glass are reinforced with seamless integral square tubes. The upper and lower beams are: 100*50*3 mm. The corners of the beams use L shape of complete square tube to increase overall stability and safety. The ground fixing screws are reinforced with 304 stainless steel M16.



Let players feel the overall solidity, safety and high quality.



Offcial Padel Tennis Courts

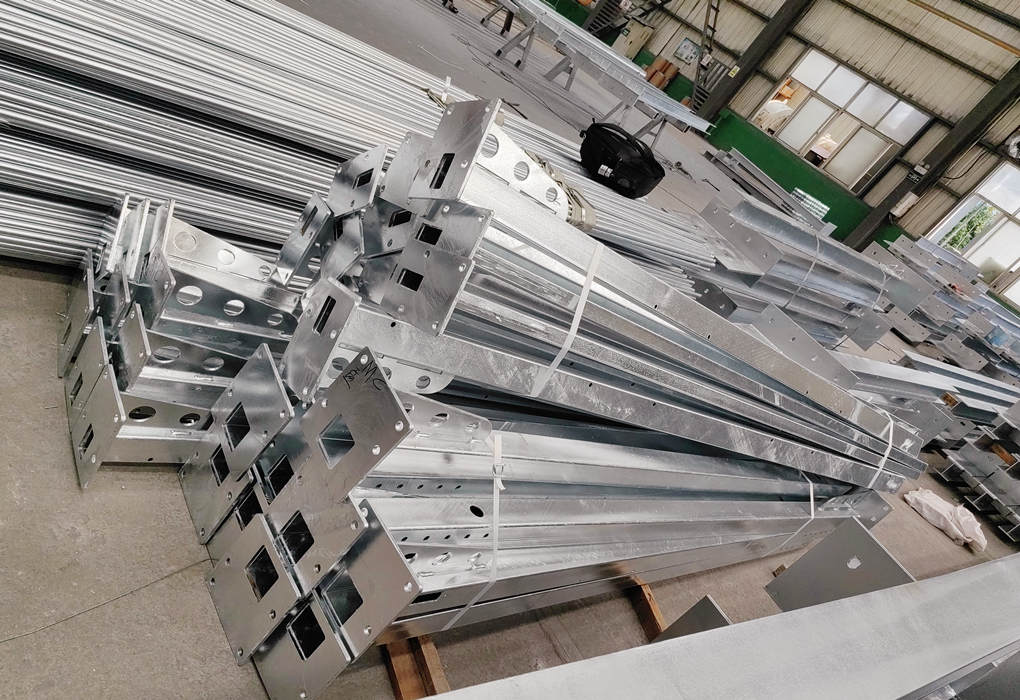

1. Total Metal structure is Made of high-quality Q235B hot-dip galvanized steel with a thickness of 3mm*100*100, it will not rust or corrode when exposed to rain for long time outdoors. Make sure the metal structure of your paddle tennis court is strong and safe.

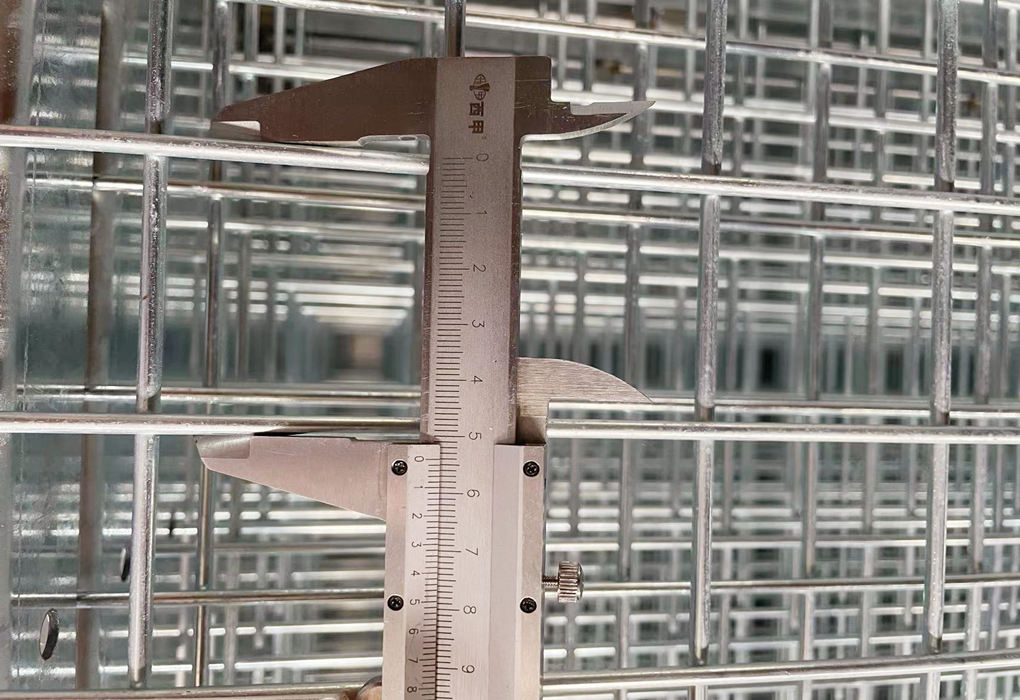

Hot-dip galvanized mesh diameter 4mm, 50*50mm hole spacing, the welding method is 1-to-1 welding, and there are no protrusions in the welding part to ensure safety and beauty.

Use digital intelligent laser equipment to cut and drill holes to ensure accurate dimensions and seamless links between accessories, Let whole metal structure stronger and more beautiful.

Outdoor use powder Spray: The surface is coating with zinc powder twice. Covered with a thermosetting powder polyester coating formulated from polyester resin. The powder contains zinc component, which has good corrosion resistance and UV resistance and does not rust for long-term outdoor use.



 Mesh Fence for Padel Tennis Court

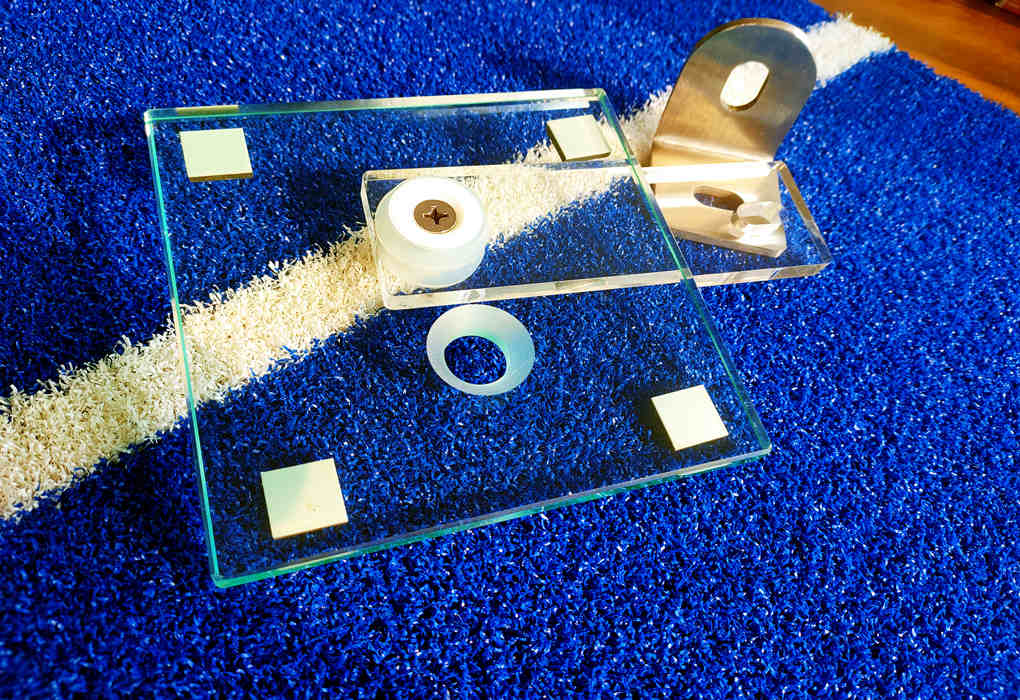

2. CE Certified 12mm thickness explosion-proof tempered glass



Complies with European Standard EN 12150-1

Glass with flat polished edge, with perfect planimetry and fully homologated according with the WPT designs: 2995x1995mm of 18 glasses with countersunk holes, All designs and technology comply with FIP

 Passed CertificateSGCC ,IGCC, ISO ,CSI, SAI Global, AS/NZS4666, CCC ,CE .

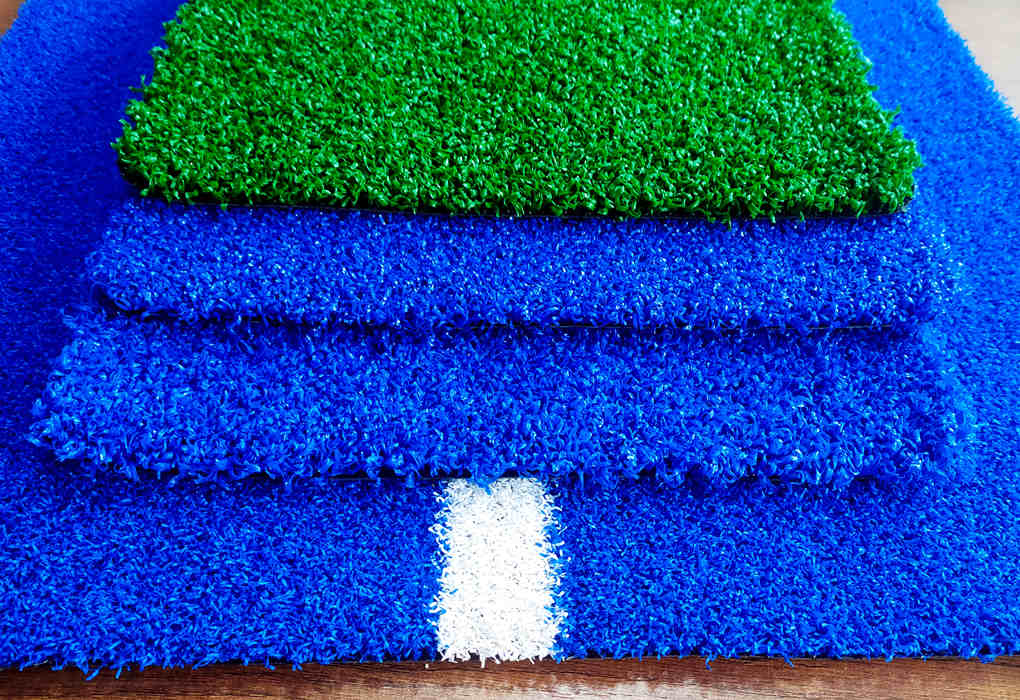

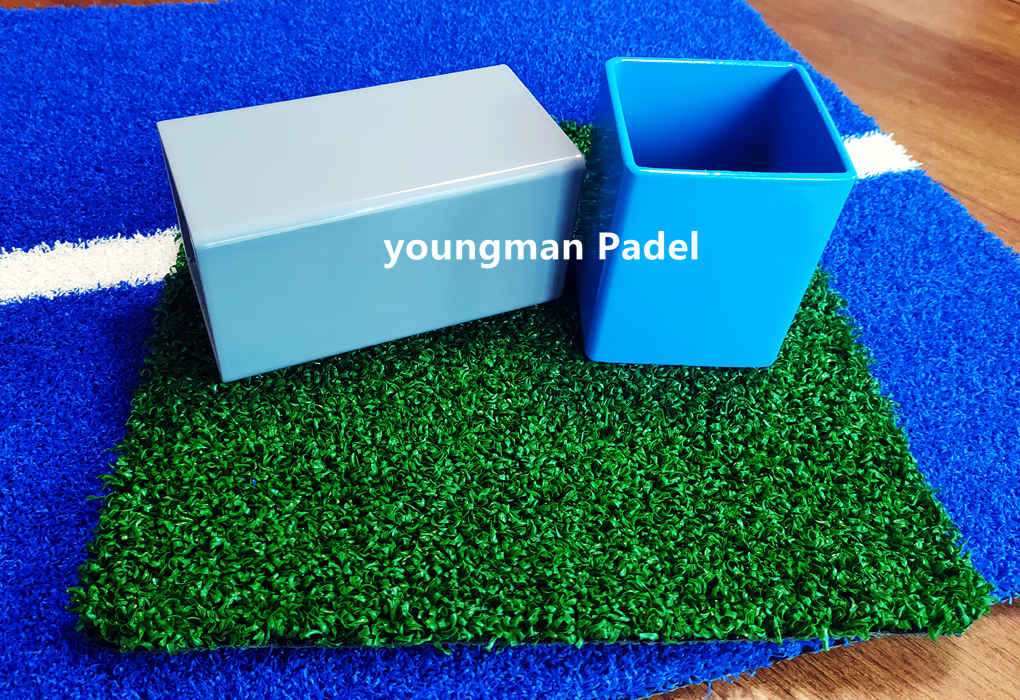

3. Mondo monofilament reinforced Artificial Turf is officially designated by FIP

YATN CONTENT: 100% U.V.RESISTANT  PE

YARN WEIGHT: >1600g/m², 30sticthes/10cm.

 Height: 12 mm ,          Density: 63000 / m²

Grass silk : 10000 Dtex ,     Guage Inch: 3/16 ,

Turf Backing: PP Net+PU,

Color: blue, green, gray and purple

   The Grass has non-slip design,100% UV resistance and anti-aging composition. Longer service life outdoors .



4. Outdoor IP65 Waterproof LED lights, 200W*8 sets, ultra-thin design is easy to install at high altitudes.
