World Padel Tour Panoramic Padel Court China Factory

This World Padel Tour specific Padel Court has a 360-degree panoramic view, perfect for live broadcasts of matches.

  • Raw Materials :

    Metallic Structure, Artificial Turf, Glass, Led Lights
  • Minimum order :

    1 set
  • Payment :

    TT or others Payment
  • Product Origin :

    CHINA
  • Color :

    Any Colors
  • Shipping Port :

    China Shanghai
  • Lead Time :

    8-12 Days
  • Padel Court Size :

    20*10M



This high-spec paddle tennis court is suitable for Padel clubs, hotels and private villas. This size and design complies with International Padel Federation and World Padel Tour rules.

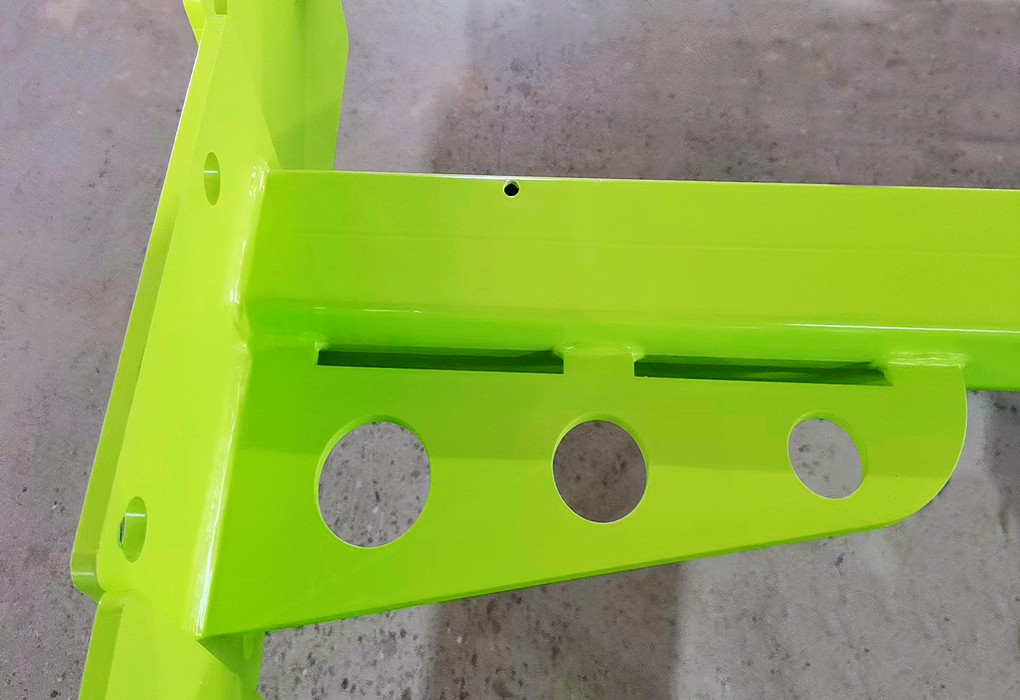

The metal structure uses reinforced Q235 steel pipes. The steel pipes are embedded and fixed, and stainless steel rivet nuts are used to fix the brackets. Self-drilling screws are suppressed. The structure is tighter, more impact-resistant, and easier to assemble and disassemble. All are fixed with 304 stainless steel screws. Make the overall frame structure stronger and safer.

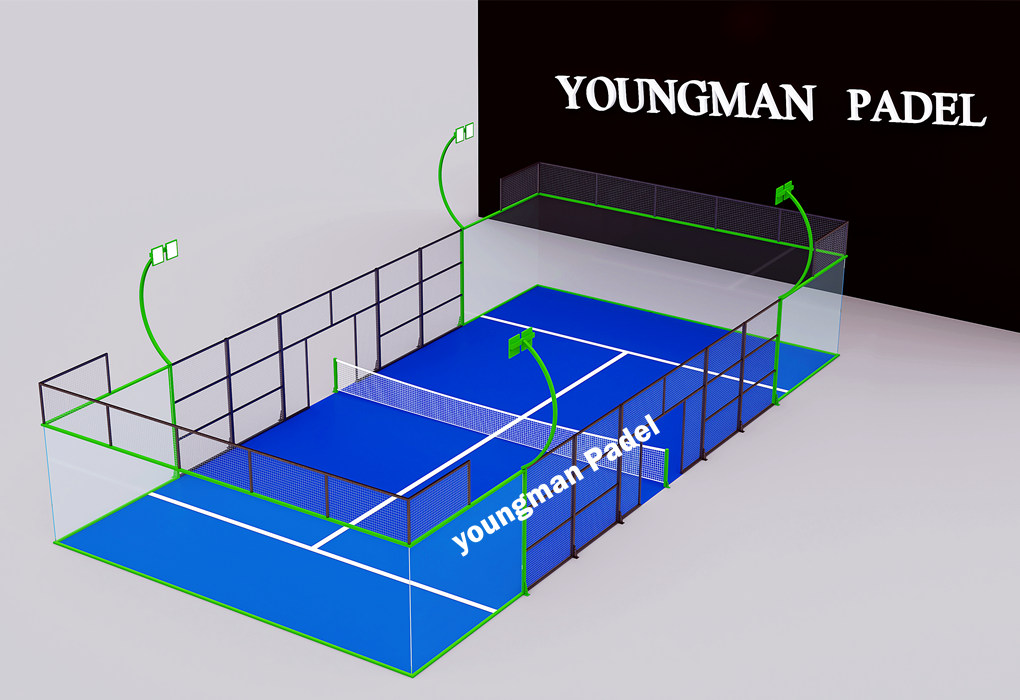

 World Padel Tour Panoramic Padel Court



The WPT Full Panoramic Padel Court Metallic Structure:

Mesh Frame Post: 50*100mm*3000mm. Mesh frame size: 1000*2000mm,

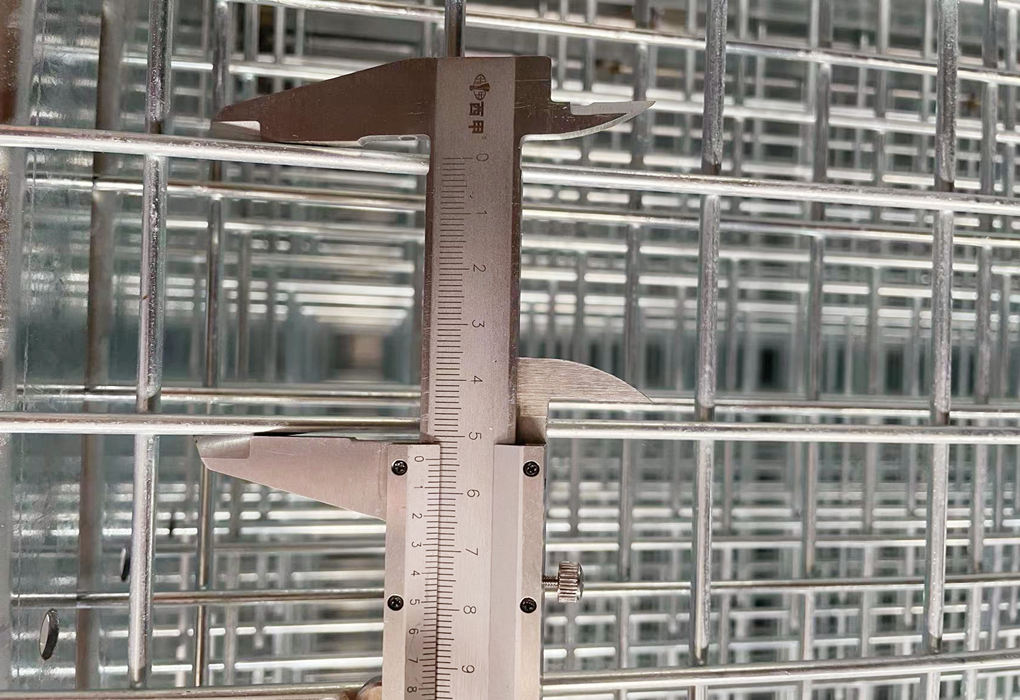

Mesh Frame tube: 50*30*2.5mm, Wire Mesh: 50*50*4mm.

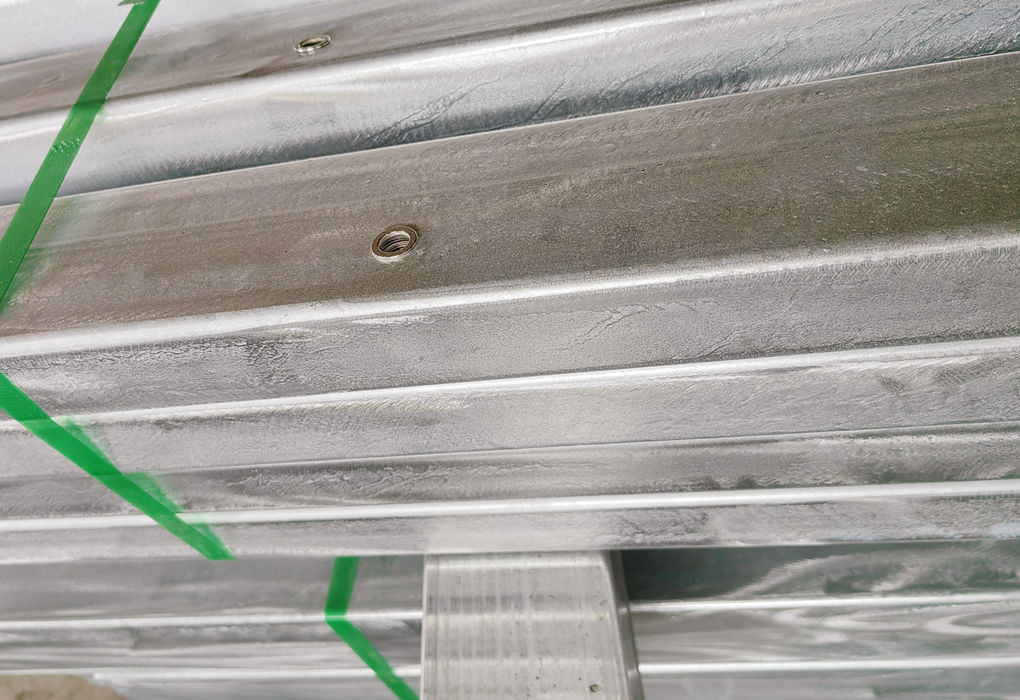

Hot-Dip Galvanized Lamp Columns:

Steel pipe size: 100*100mm*3000mm.

Lamp Post steel square pipe: 40*80*3000mm.

The Beams on the 20-meter side:  50*100mm*4000mm.

The Beams on the 10-meter side 50*100mm*6000mm.

Upper and lower corner joint Crossbars: 50*100mm*2000mm*2000mm.

Furthermore, structural calculations are realised and are available for customers and architects if required.All the metallic structure pillars are reinforced with huge square adding more resistance and consistency.

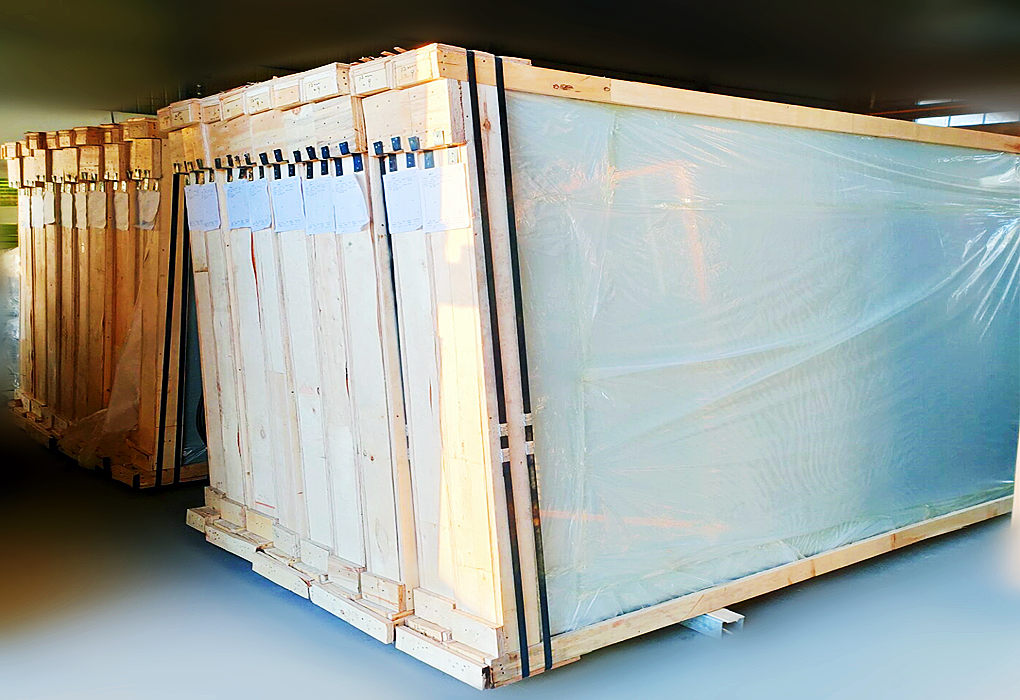

18 pieces Tempered Glass 299.5 × 199.5 × 12 mm :

Tempered Glass Padel Courts

  Performance: Impact resistance, shotbag impact performance, fragmentation state comply with GB 15763.2-2005

( Safety Glass for Building Part 2 Tempered Glass ), Comply with AS/NZS2208:1996, EN 12150-1,CAN/CGSB 12.1-2017, ANSI Z97.1-2015.

Use the best float glass as raw material. The high-quality float glass does not contain any impurities, so the self-explosion rate after tempering is much lower and the service life is longer.

Strong production capacity. Our factory has advanced equipment imported from Europe and professional technicians. It can produce more than 10,000 square meters of tempered glass every day.

Heat-resistant function. It is 5 times heat resistant than float glass and can withstand sudden temperature differences of up to 300 degrees. This makes it safer in the event of a fire.

Super high strength. The strength of tempered glass is 3-5 times that of ordinary annealed float glass, so it is very safe to use tempered glass for tennis courts.

Excellent edging process and drilling process. Excellent edging and drilling not only bring beautiful appearance, but also further enhance the strength of tempered glass.

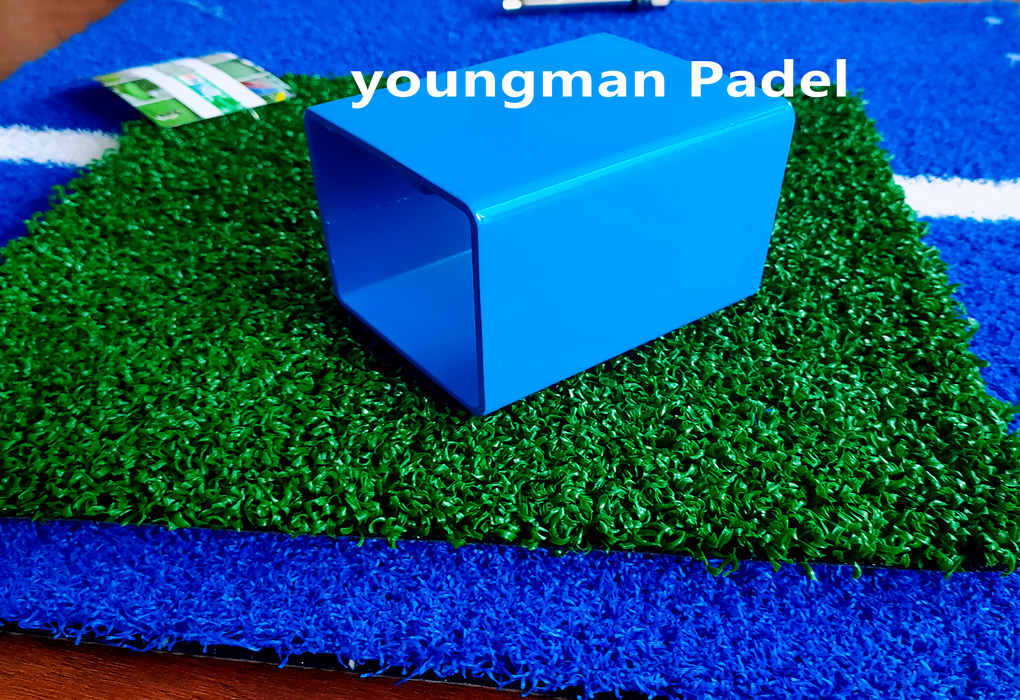

 Curled Type WPT Padel Artificial Turf : Reinforced monofilament Grass

Density: 63000 / m²,    Height: 12 mm.

Grass silk kind: 10000 Dtex , Color: Blue or Green.

Guage Inch: 3/16  , Turf Backing: PP Net+PU.

  Grass Passed Certificate:

   CE , ROHS , GB/T 21604-2008 (Skin irritation test).

   GB 21510-2008 (Antibacterial and Antifungal Testing).

   Lisport (Wear-resistant 150,000 weeks ).

   SGS (Resist UVA5000h) ,  GBT20394—2013 (Prevent Burn Test) .

   REACH205 (European standard ).

   GBT20394—2019   All test ,   GB36246-2018    All test.

Artificial curled grass : standard size roll 4000 mm/2000 mm.

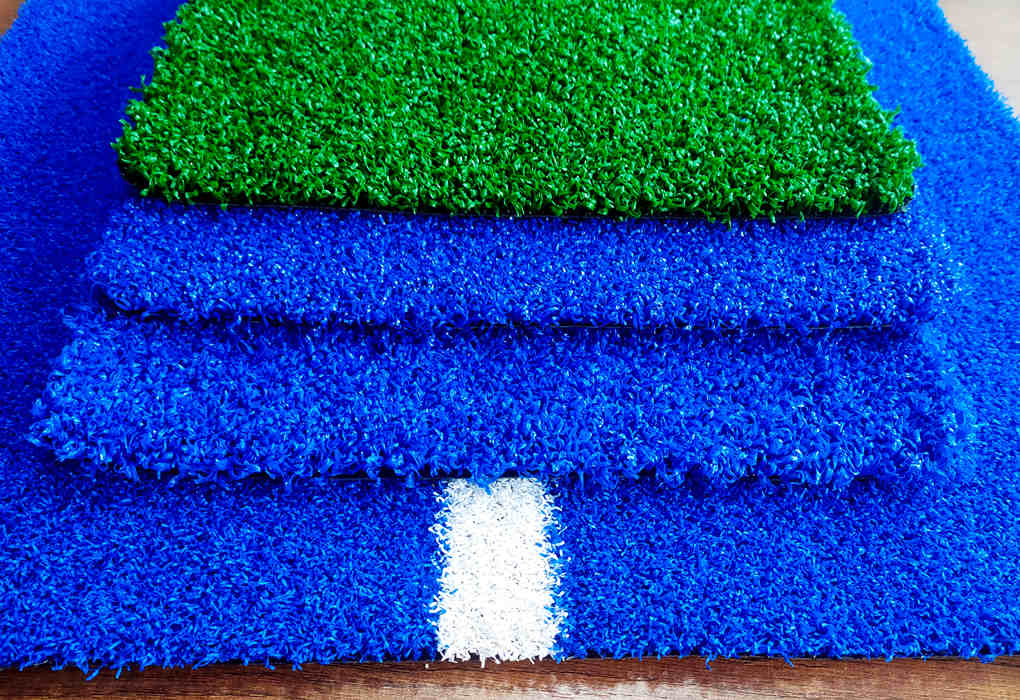

 Padel Turf



Padel Tennis Net:

The specifications of the tennis net are 10 meters x 0.92 meters, Net Mesh distance: 4*4 cm, thick steel wire tension rope, black knotted network cable, and PVC white edging. The network cable is made of anti-ultraviolet and anti-aging materials.



Lighting System:

      8 sets LED Lights, each Set power is 200 W.

 IP 65 Waterproof .The light column is embedded inside the fence.

Height of the light column is 6000 mm, illumination reaches 300 Lux.

The shell is thin, light in weight, new technology material outdoor

IP65 waterproof LED light. Easy to install.
