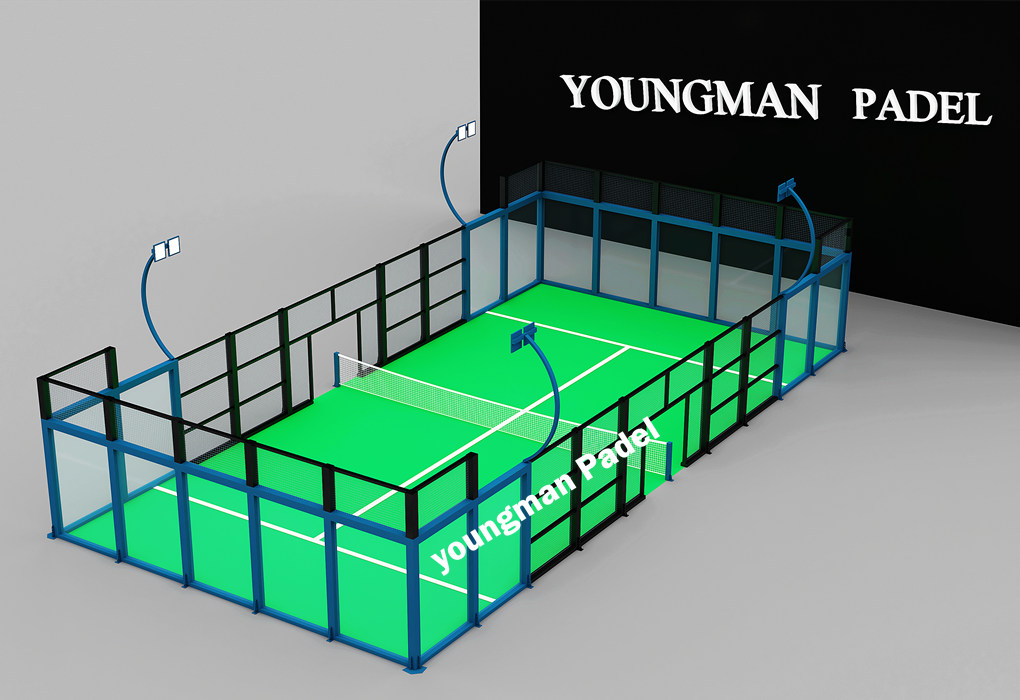

WPT Model Padel Courts With Panoramic Structure

China Youngman Padel Sports has successfully exported different styles of paddle tennis courts to Middle Eastern countries, Saudi Arabia, Oman, Kuwait, Qatar, etc., South American countries such as Chile, Argentina, Panama, Uruguay, Venezuela, etc., and many countries in Europe and Africa.

All Columns and Beams are use High quality Hot-Dip Galvanized Steel ,

Hot-dip Galvanized High Quality Steel has the advantage of anti-corrosion, not fall off, not rust after long time Outdoor use.

Galvanized Mesh Fence:

Wire Mesh :4 mm, Hole Distance: 50*50 mm,  Frame Size: 1 * 2 m.

Anti-Rust Hot-dip Galvanized Columns and wire mesh , Electrostatic Zinc Powder Coating,

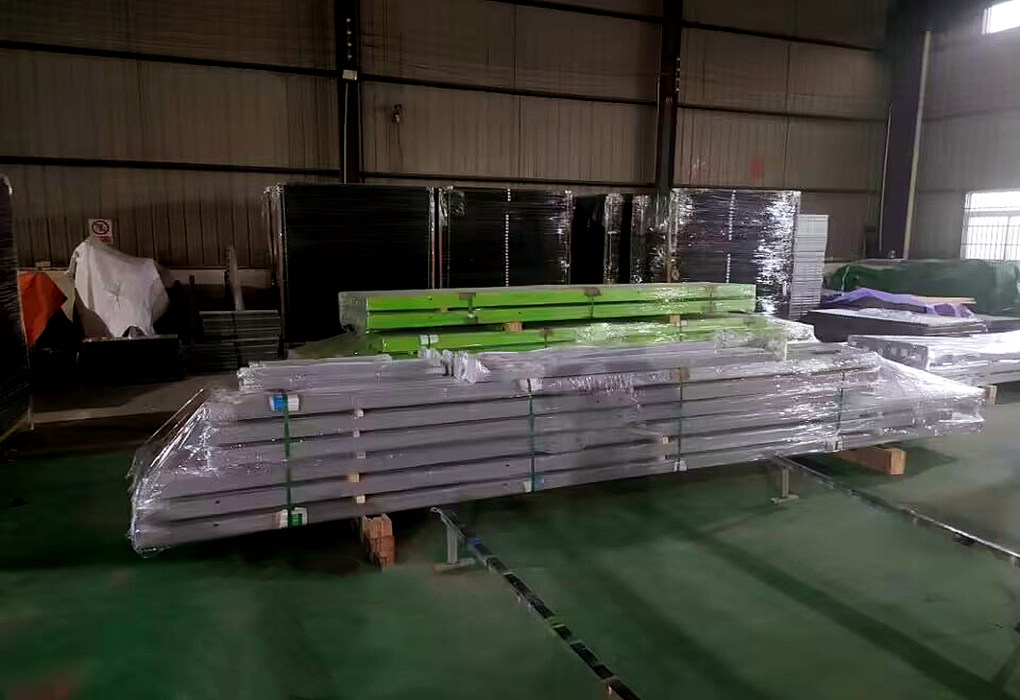

WPT Standard Padel Court with 100mm*100mm*3mm Columns and Beams:

Material:Q235 high quality steel square tube, Size:100mm*100mm*3mm, Length: 3m.

Crossbars：Size:100mm*50mm*3mm，lower bar：Size:100mm*50mm*3mm，Length: 5m.

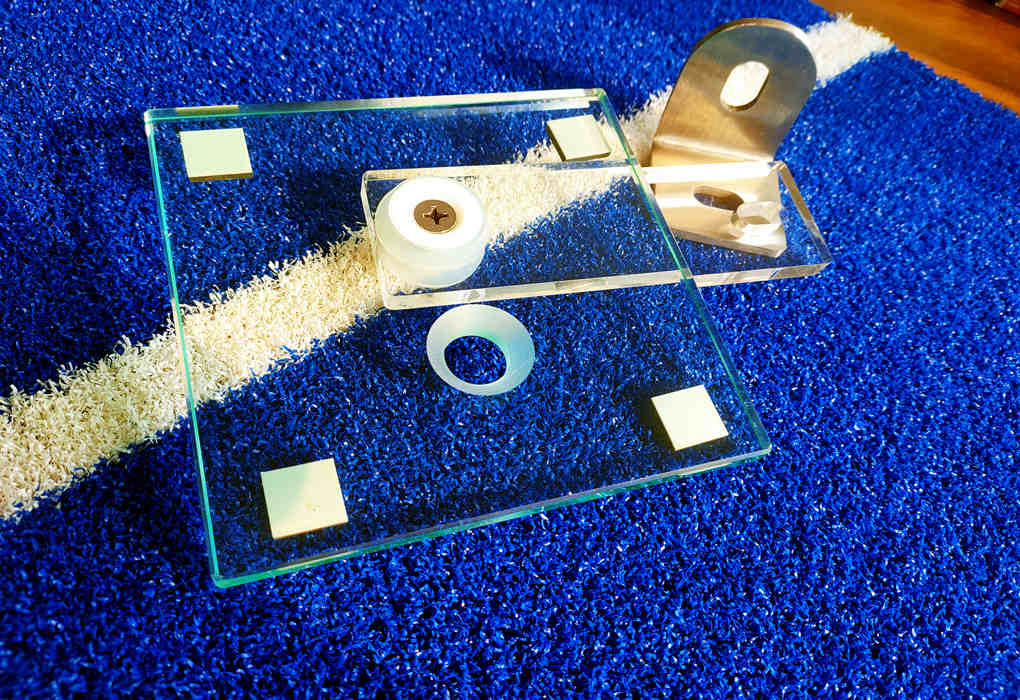

Explosion-Proof Tempered Glass

1 piece of glass with 8 countersunk holes and finely ground edges.

 12mm Thickness , Dimension：2995*1995mm, 1Set Padel Court with 18 pieces Tempered Glass.

Certificate：CE, CCC, SGCC ,IGCC, ISO ,CSI, SAI Global, AS/NZS4666. Complies with European Standard EN 12150-1 .

Strong production capacity. Our factory has advanced equipment imported from Europe and professional technicians. It can produce more than 10,000 square meters of tempered glass every day.

Heat-resistant function. It is 5 times heat resistant than float glass and can withstand sudden temperature differences of up to 300 degrees. This makes it safer in the event of a fire.

1.  Use the best float glass as raw material.

2.  Every production process has quality inspection.

3. Powerful production capacity. 60% of our production machines are imported from world-class famous brands in Europe. For example, cutting machines and polishing machines from Italy (Intermac, Bavelloni), cleaning machines from Germany (Benteler), tempering ovens from Finland (Glaston, Tamglass), fully-smart glass production system from Austria(LiSEC). The remaining 40% of our machines are from the best China brands, such as GoLive, TCME, Jinglass. Daily production capacity of tempered glass is more than 10000 sqm.

4. Excellent polishing edge and countersunk hole, no scratch or chip on glass surface. They can not only bring beautiful appearance, but also further enhance the strength of tempered glass.

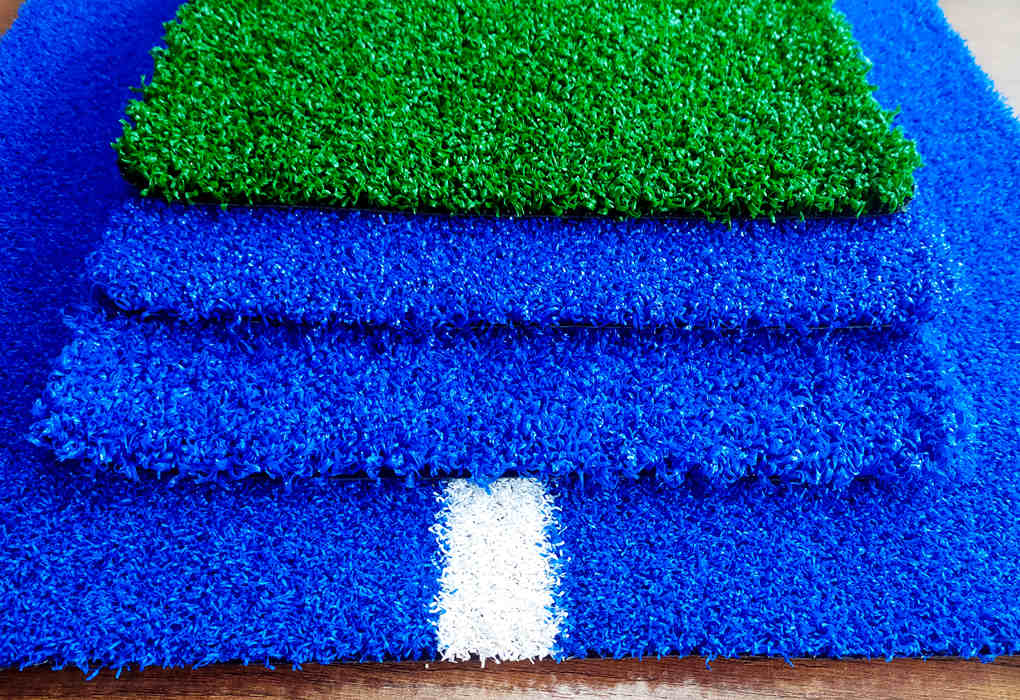

 Artificial Grass : Reinforced monofilament Grass

     Yarn composition: 100% polyethylene

Density: 46200 Stitch/m²,    Height: 12 mm.

Yarn Dtex: 8600 , Color: Blue or Green

Stitch Rate：22sticthes/10cm

Primary Backing Cloth：Fleeced backing with PET yarn reinforced + PP Anti-UV backing

Coating：Polyurerthane (PU) appr. 700 g/ m²

Guage Inch: 3/16 , Turf Backing: PP Net+PU.

Water permeability ：≥30L/min/m² with 2mm perforation holes(none infilling).

  Grass Passed Certificate:

   CE , ROHS , GB/T 21604-2008 (Skin irritation test)

   GB 21510-2008 (Antibacterial and Antifungal Testing)

   Lisport (Wear-resistant 150,000 weeks )

   SGS (Resist UVA5000h) ,  GBT20394—2013 (Prevent Burn Test) .

   REACH205 (European standard )

Lighting System:

    8 groups LED lights with China Famous Brand, each Set power is 200 W.

 IP 65 Waterproof .The light column is embedded inside the fence.

Height of the light column is 6000 mm, illumination reaches 300 Lux.

The shell is thin, light in weight, new technology material outdoor

IP65 waterproof LED light. Easy to install. It is convenient to adjust

the irradiation direction.

Padel Tennis Net:

The specifications of the tennis net are 10 meters x 0.92 meters, Net Mesh distance: 4*4 cm, thick steel wire tension rope, black knotted network cable, and PVC white edging. The network cable is made of anti-ultraviolet and anti-aging materials.
