Spanish Padel Federation Official Court Suppliers And Manufacturers

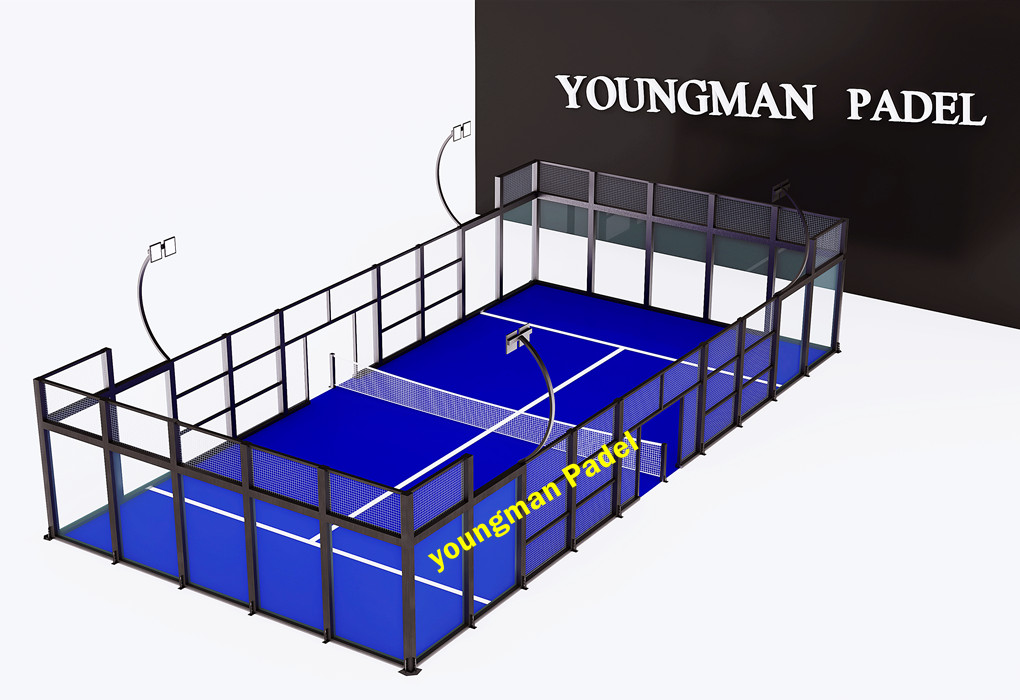

The standard size of the paddle tennis court we design and produce is 20 meters in length and 10 meters in width, and is composed of a total of 18 pieces of tempered glass. Conform to the rules of International Padel Federation (FIP). Our courts use high-quality raw materials and intelligent equipment to finish all accessories. The courts have passed CE certification and SGS official certification.

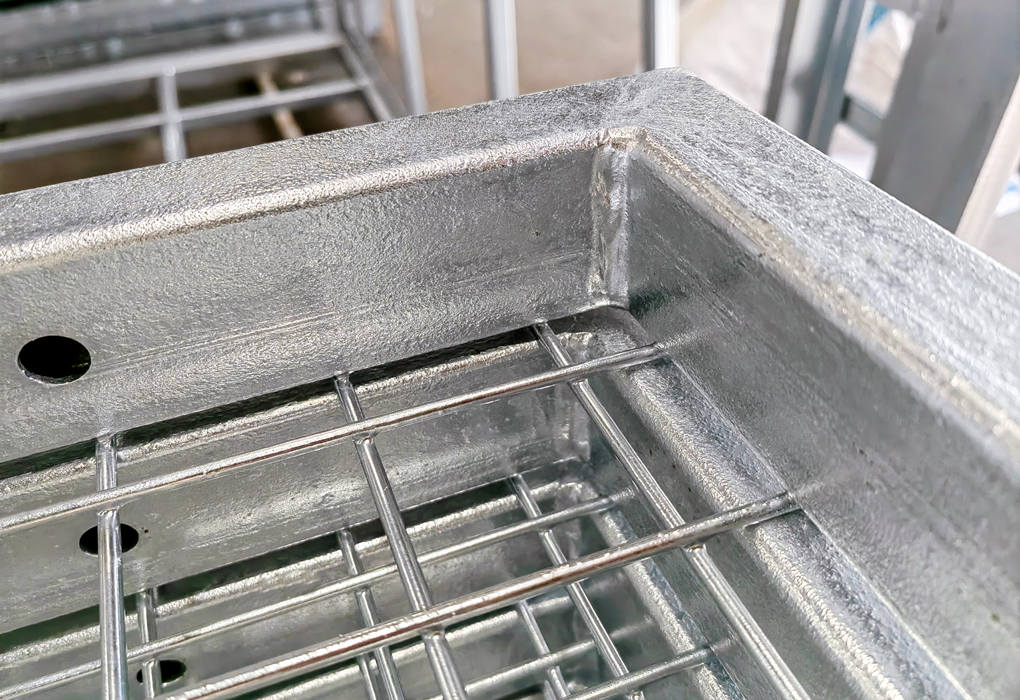

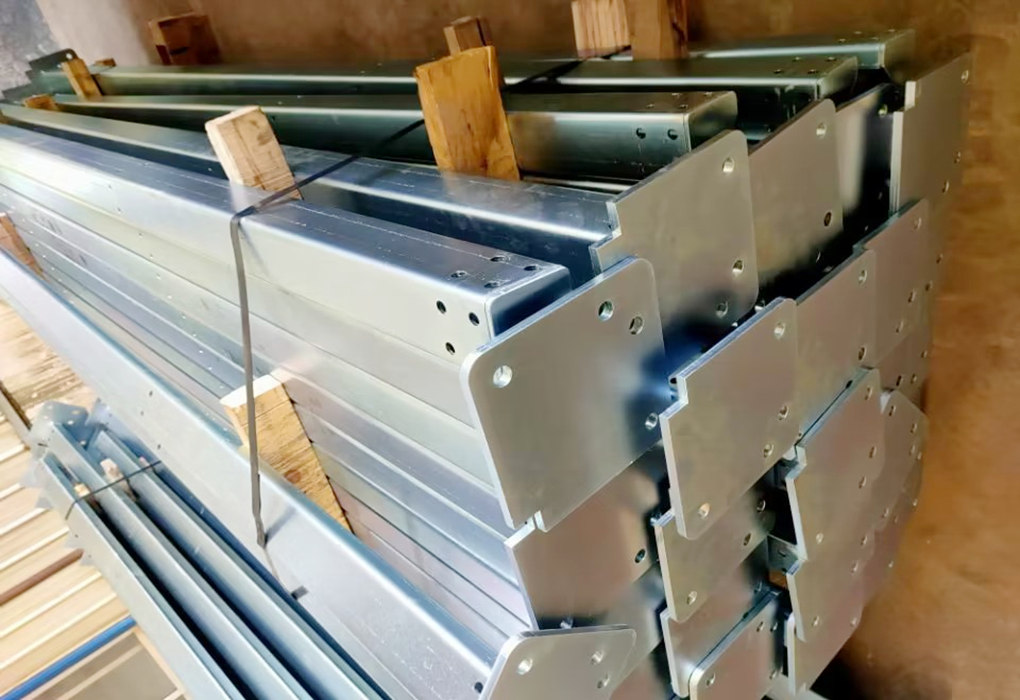

Columns and Beams:

Material: Q235 steel,  Size:100mm*100mm*3mm,  Length：3m.

Crossbars：Size：100mm*50mm*3mm， Length：5m.

All Columns and beams are use High quality Hot-Dip Galvanized Steel ,

Hot-dip Galvanized High Quality Steel has the advantage of anti-corrosion, not fall off, not rust after long time Outdoor use.

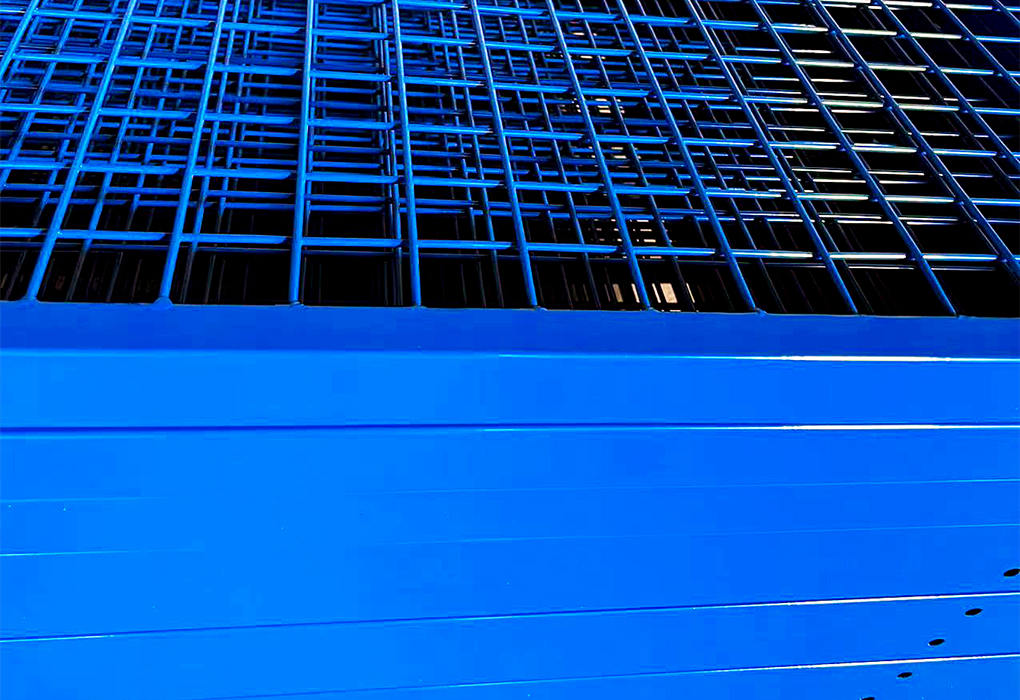

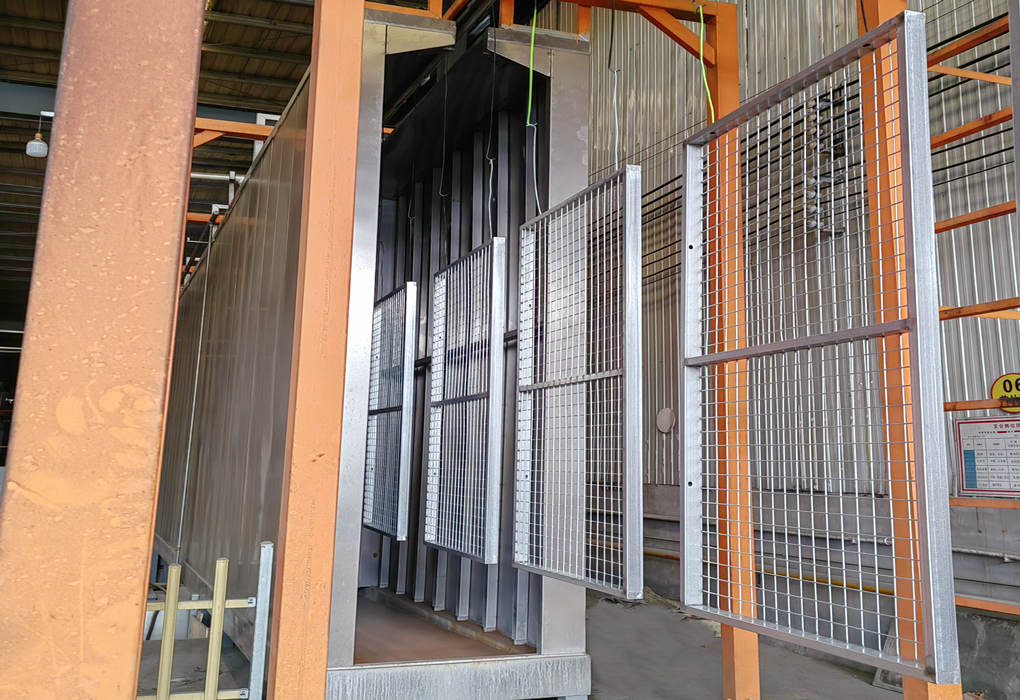

Galvanized Mesh Fence:

Wire Mesh :4 mm, Hole Distance: 50*50 mm,  Frame Size: 1 * 2 m.

Hot-dip Galvanized, Electrostatic Zinc Powder Coating, Anti-Rust .

Bolts & Screws:

All accessories ,fittings, lugs and screws used to fasten the structure and glass panes are made of 304 stainless steel .

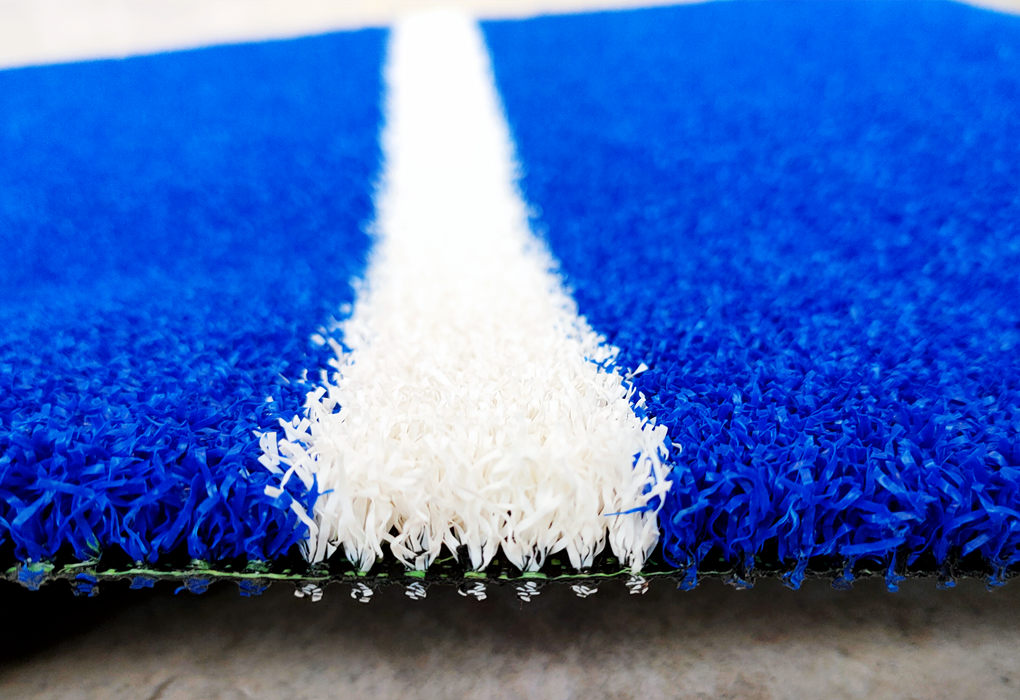

 Curled Type Artificial Grass, Reinforced monofilament Grass

 Certificate:

   CE , ROHS , GB/T 21604-2008 (Skin irritation test)

   GB 21510-2008 (Antibacterial and Antifungal Testing)

   Lisport (Wear-resistant 150,000 weeks )

   SGS (Resist UVA5000h) ,  GBT20394—2013 (Prevent Burn Test) .

   REACH205 (European standard )

   GBT20394—2019   All test , GB36246-2018  All test.

Artificial curled grass : standard size roll 4000 mm/2000 mm.

Length: 20000 mm,    Height: 12 mm.

Grass silk kind: 9000 Dtex ,  Color: Blue or Green

Guage Inch: 3/16 , Turf Backing: PU. Turf density is 58800 / m² .

Standard: Comply with GB/T 20394-2006 (Sports Artificial Turf premium product ) . Color: blue, green (customizable)

This model grass lawn is one of the most high-end products, Which is special manufacturing for Padel Court, we are exported to Europe, such as the United Kingdom, France, Italy, Spain, etc. this grass silk material is high linear PE plastic particles imported from the United States, using KDK With special craftsmanship, the grass silk keeps the color and curvature for a long time to extend the life. The base fabric adopts double-layer twill weave, which is different from ordinary warp and weft knitting. The base fabric has stronger tear resistance and reduces the risk of wrinkles caused by thick grass yarns and high density. At the same time, the back glue is coated with polyurethane material. Poisonous and environmentally friendly, no mold or slag, customers can use it with more peace of mind. The most important thing is that when the height of the grass is 12mm, the grass can be locked to the greatest extent and the service life is prolonged.

Tempered Glass: Complies with European Standard EN 12150-1

Glass Passed Certificate：SGCC ,IGCC, ISO ,CSI, SAI Global, AS/NZS4666, CCC ,CE .

Tempered glass type: special explosion-proof tempered glass,

  Performance: Impact resistance, shotbag impact performance, fragmentation state comply with GB 15763.2-2005

( Safety Glass for Building Part 2 Tempered Glass ), Comply with AS/NZS2208:1996, EN 12150-1,CAN/CGSB 12.1-2017, ANSI Z97.1-2015.

Size: 1995*2995MM*18 pics ,  Thickness 12 mm.

Use the best float glass as raw material. The high-quality float glass does not contain any impurities, so the self-explosion rate after tempering is much lower and the service life is longer.

LED Lights:

 Special dazzling LED lights for tennis courts.

8 groups LED lights with China Famous Brand, each Set power is 200 W.

 IP 65 Waterproof .The light column is embedded inside the fence.
