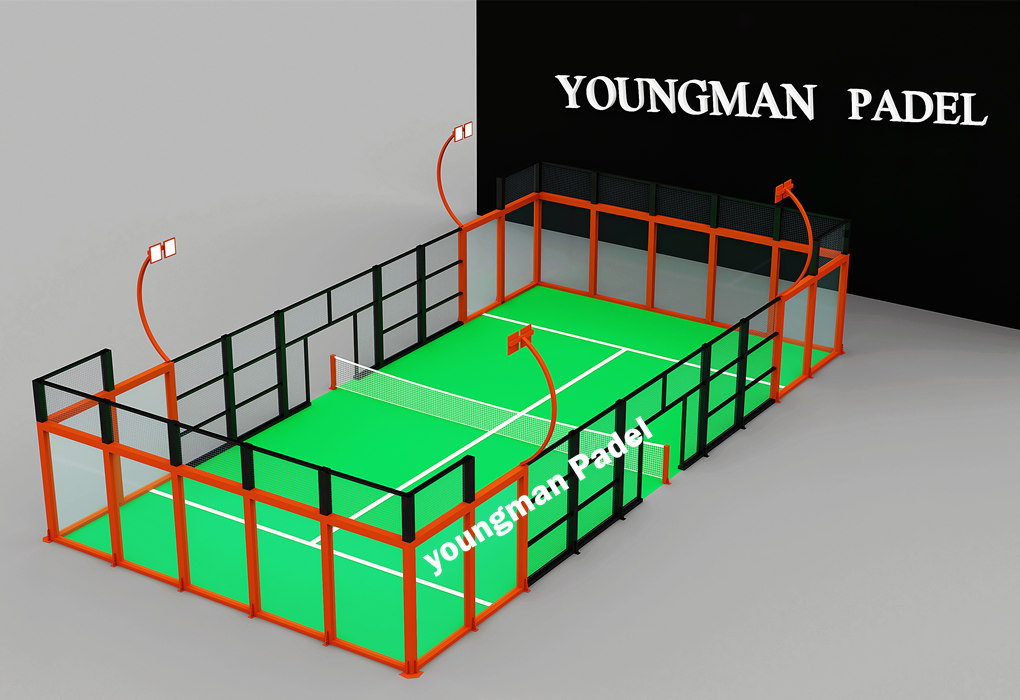

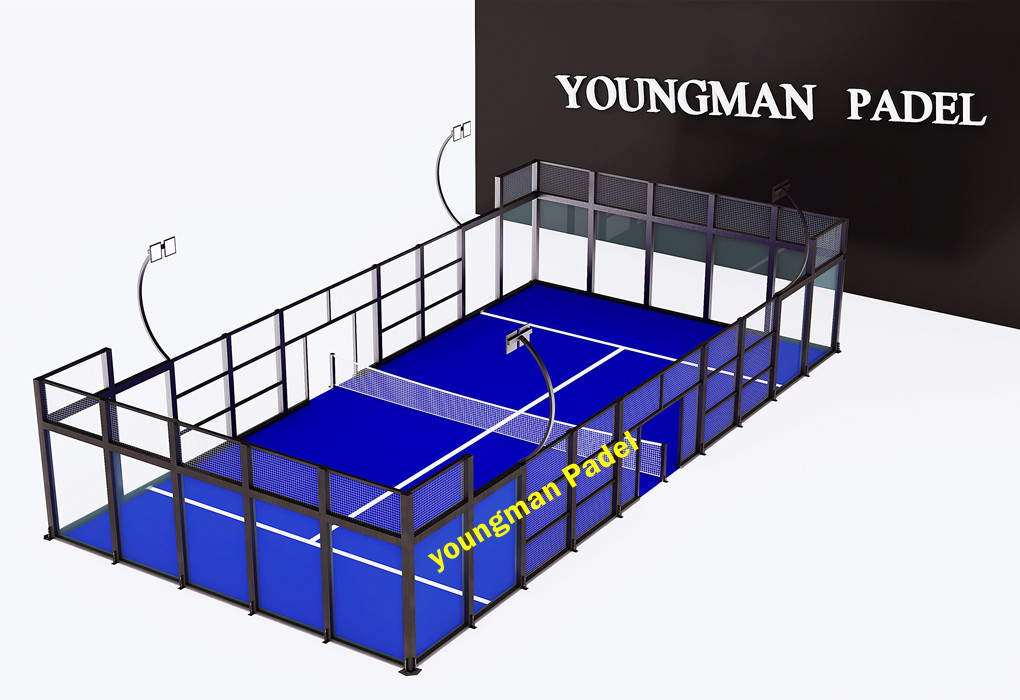

Outdoor Classic Padel Court With 12mm Tempered Glass

This personalized classic paddle tennis court is produced according to professional design drawings, which complies with the regulations of the International Padel Federation and WPT.

Mechanically formed, the links are tighter, seamless and more beautiful Court .

The advantages are as follows：

1. Stronger wind load resistance.

2. Additional columns in the glass area make the glass more stable.

3. Mechanically formed, the links are tighter, seamless and more beautiful.

Artificial Turf design for Padel :

Fibrillated polypropylene artificial turf fiber with progressive fibrillation alignment style.

Silk height: 12mm

Yarn Dtex: 9500 Dtex

Infill: 80-100 mesh quartz sand

Customizable Colors: Black, Yellow, Green, Pink etc.

   The Grass has non-slip design,100% UV resistance and anti-aging composition. Longer service life outdoors . white grass is woven directly into the whole artificial turf as a whole.

The customer does not need to waste time on manual splicing by glue. The white grass and blue grass of other companies are separated,

and customers need to waste time to splice them manually. Our artificial turf can be tiled directly on the padel court.

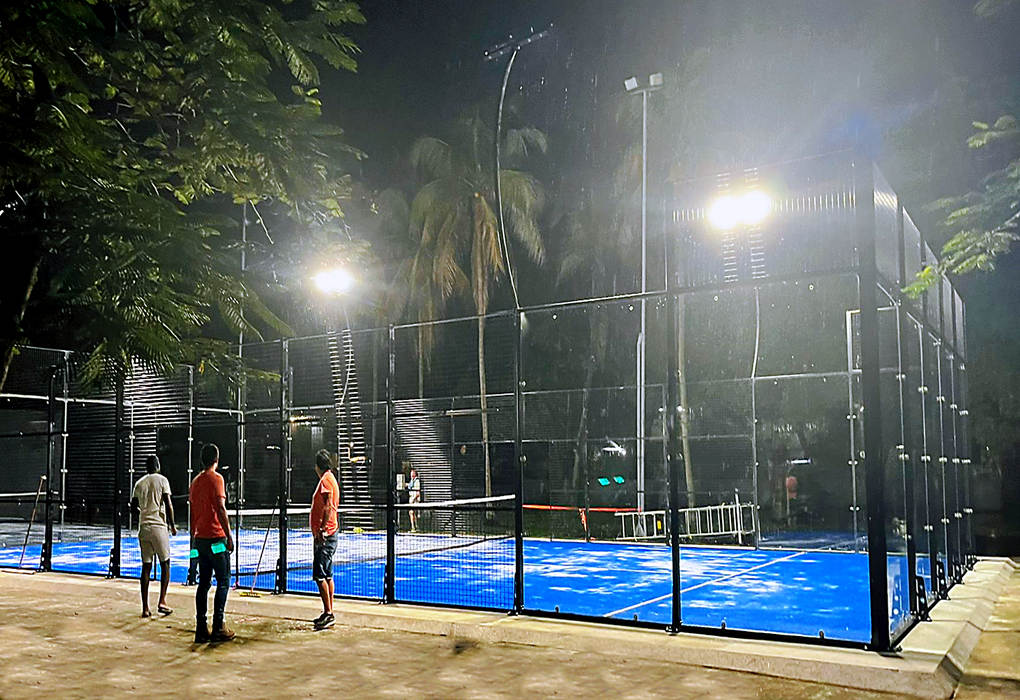

Lights System:

 LED lights with China Famous Brand, each Set power is 200 W*8 Sets.IP 65 Waterproof .The light column is embedded inside the fence.

Height of the light column is 6000 mm, illumination reaches 300 Lux.

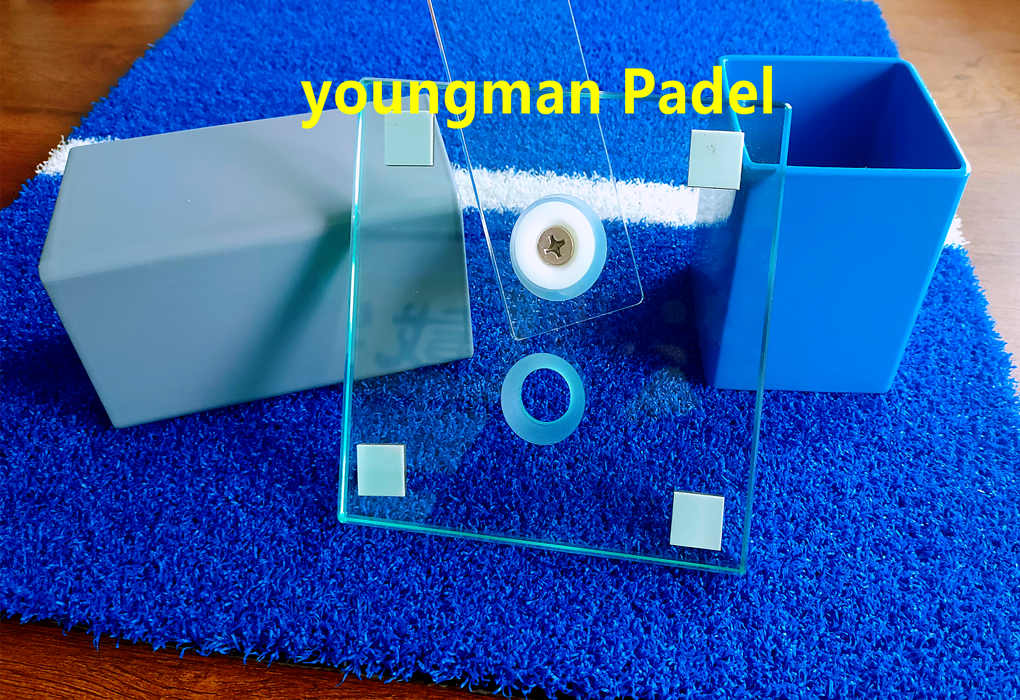

Float Tempered Glass:

2995*1995mm*18 pics  , Thickness 12 mm .

European Standard EN 12150-1,

 Passed Certificate：CE, SGCC ,IGCC, ISO ,CSI, SAI Global, AS/NZS4666, CCC ,

1.  Use the best float glass as raw material.

2.  Every production process has quality inspection.

3. Powerful production capacity. 60% of our production machines are imported from world-class famous brands in Europe. For example, cutting machines and polishing machines from Italy (Intermac, Bavelloni), cleaning machines from Germany (Benteler), tempering ovens from Finland (Glaston, Tamglass), fully-smart glass production system from Austria(LiSEC). The remaining 40% of our machines are from the best China brands, such as GoLive, TCME, Jinglass. Daily production capacity of tempered glass is more than 10000 sqm.

4. Excellent polishing edge and countersunk hole, no scratch or chip on glass surface. They can not only bring beautiful appearance, but also further enhance the strength of tempered glass.

Material and Crafts of Columns and Beams:

The column is made of high-quality steel pipe with hot-dip galvanizing process, size of the steel pipe: 100×100×3 mm,

the Raw materials of our Columns and Beams steel, mesh fence are hot-dip galvanized high-quality steel , first step: steel and mesh fence through the hot-dip galvanizing process . Second step : New technology electrostatic spray Outdoor powder coating on the surface. Electrostatic spraying of zinc outdoor base Powder first and then spraying best quality outdoor use Powder on the surface again. 2 times Powder spraying. Our hot-dip galvanized has the advantage of anti-corrosion, not fall off,

not rust and not fade of color after long time use. Hot-dip galvanizing is durable. .
