New Frame System Classic Padel Tennis Court With Factory Price

Youngman Padel Court system has perfectly observe the standards of EU quality standard.

we have various ranging, from Economical level to Competition level that is international standards, aiming to assist customers all over the world to build their dream Padel Tennis Courts with flexible customization service.

GALVANIZED STEEL MESH

  wire mesh with diameter is 4mm, 50*50mm hole spacing, and hot-dip galvanized steel pipe size: 50*30*2.5mm, the welding method is 1-to-1 welding, and there are no protrusions in the welding part to ensure safety and beauty.

Robot Welding: ensure welding quality and beautiful appearance.

GALVANIZED STEEL TUBE

The thickness of hot-dip galvanized steel pipe is 3 mm. The national industry standard for galvanized layer thickness is more than 55um. The thickness of the hot-dip galvanized layer of our steel pipe is 75um. Exceeds industry standards and can anti-corrosion and Anti-rust for outdoor use for more than 10 years.

The 4 corner columns are composed of 100*100*3 mm, which can meet the requirements of outdoor wind load resistance.

upper and lower beams for glasses are composed of 100*50*3 mm, Achieve solidity and beauty at the same time.

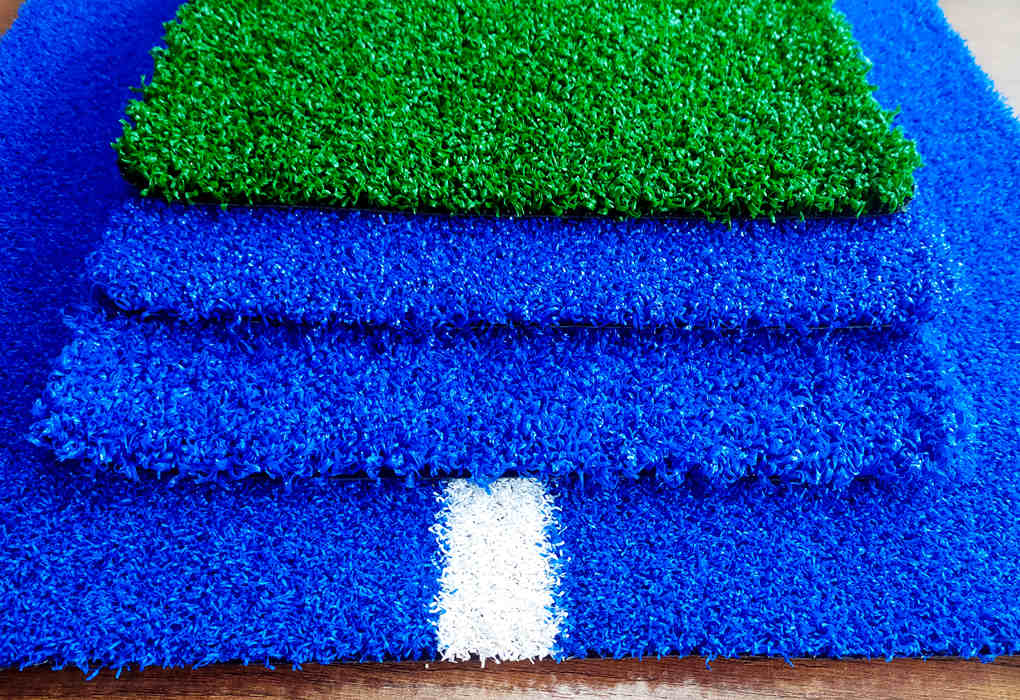

ARTIFICIAL TURF(Curved)

3ROLLS PACKAGE (207m²)

Silk Height: 12mm,  Gauge: 3/16, Dtex: 9000,Backing: PP+net&PU.

Density: 58800/m² , Color: Blue/Green

This model grass lawn is one of the most high-end products, Which is special manufacturing for Padel Court, we are exported to Europe, such as the United Kingdom, France, Italy, Spain, etc. this grass silk material is high linear PE plastic particles imported from the United States, using KDK With special craftsmanship, the grass silk keeps the color and curvature for a long time to extend the life. The base fabric adopts double-layer twill weave, which is different from ordinary warp and weft knitting. The base fabric has stronger tear resistance and reduces the risk of wrinkles caused by thick grass yarns and high density. At the same time, the back glue is coated with polyurethane material. Poisonous and environmentally friendly, no mold or slag, customers can use it with more peace of mind. The most important thing is that when the height of the grass is 12mm, the grass can be locked to the greatest extent and the service life is prolonged.

Explosion-Proof Tempered Glass

1 piece of glass with 8 countersunk holes and finely ground edges.

 12mm Thickness , Dimension：2995*1995mm, 1Set Padel Court with 18 pieces Tempered Glass.

Certificate：CE, CCC, SGCC ,IGCC, ISO ,CSI, SAI Global, AS/NZS4666.

Complies with European Standard EN 12150-1 .

Strong production capacity. Our factory has advanced equipment imported from Europe and professional technicians. It can produce more than 10,000 square meters of tempered glass every day.

Heat-resistant function. It is 5 times heat resistant than float glass and can withstand sudden temperature differences of up to 300 degrees. This makes it safer in the event of a fire.

1.  Use the best float glass as raw material.

2.  Every production process has quality inspection.

3. Powerful production capacity. 60% of our production machines are imported from world-class famous brands in Europe. For example, cutting machines and polishing machines from Italy (Intermac, Bavelloni), cleaning machines from Germany (Benteler), tempering ovens from Finland (Glaston, Tamglass), fully-smart glass production system from Austria(LiSEC). The remaining 40% of our machines are from the best China brands, such as GoLive, TCME, Jinglass. Daily production capacity of tempered glass is more than 10000 sqm.

       4. Excellent polishing edge and countersunk hole, no scratch or chip on glass surface. They can not only bring beautiful appearance,

           but also further enhance the strength of tempered glass.
