Individually Customized Padel Court Canopies Cover From China

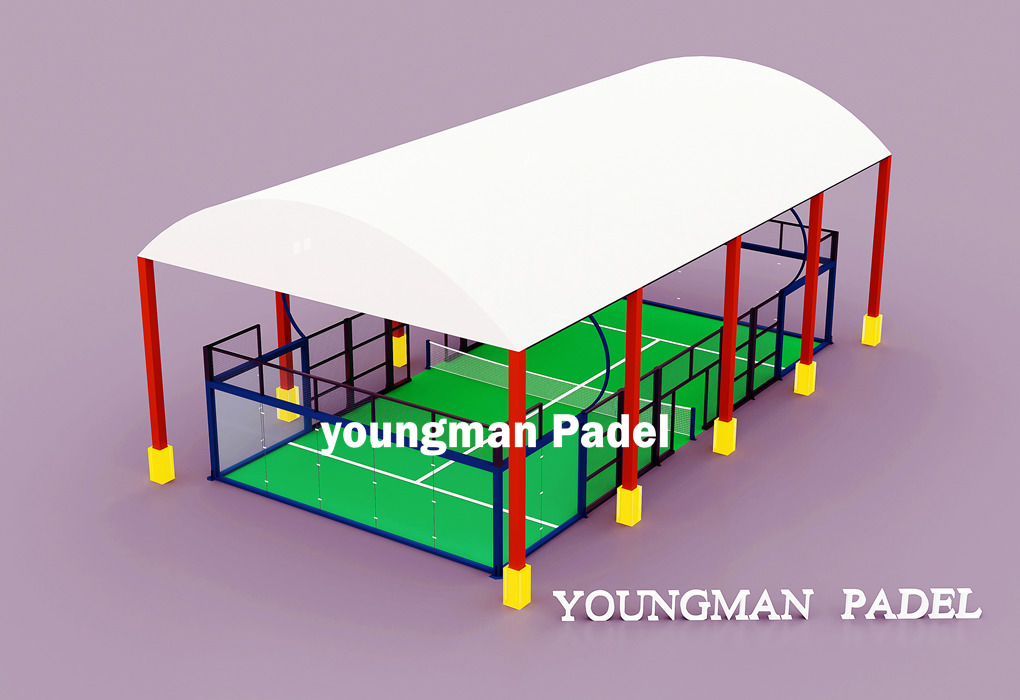

According to the padel court size 20*10 meters, this padel canopy is a customized size which Can cover 1 set paddle tennis court.

There are pull-down cloths all around to protect you from the sun and rain. At the same time, it does not affect the light inside the padel tennis courts.

The Roof size is 22 meters long * 11.85 meters wide, with a height of 6.5 meters at both ends and 8.8 meters in the middle top.

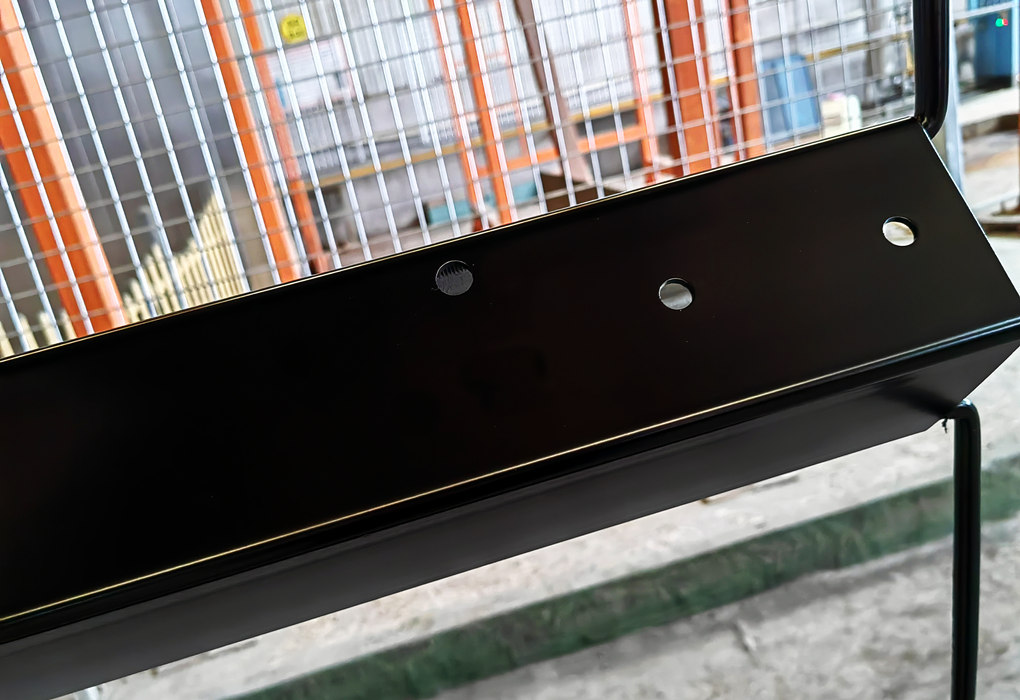

The metal structure of the Padel Court Roof consists of 10 columns, which are hot-dip galvanized square steel pipes of 150 * 150 * 3.5mm,

Industry standard hot-dip galvanized layer,

 Add outdoor powder coating to the surface of hot-dip galvanized steel pipe Anti-rust and anti-corrosion for outdoor use.

Padel Court Cover: Double PVC coated polyester, 900g/sqm, block-out, water-proof, UV resistant, EUR fire retardant, snow resistance, tear resistance.

Temperature resistance(°C) :-40°C-70°C.

Membrane Material：Double coated PVC 900 g / m².

Ground fixation method: Concrete is used for underground embedding, with a depth of 100 * 50 * 50 cm for underground concrete embedding.

The embedded parts are composed of 6 reinforced steel bars to ensure the fixed strength of the column.

This type of padel court roof has strong outdoor wind load resistance, simple installation, and is convenient and practical.
