European Standard Padel Court Roof With PVC Membrane

Tailored by our engineering structural designer based on the size and height of the padel courts.

The Roof size is 22 meters long * 11.85 meters wide, with a height of 6.5 meters at both ends and 8.8 meters in the middle top.

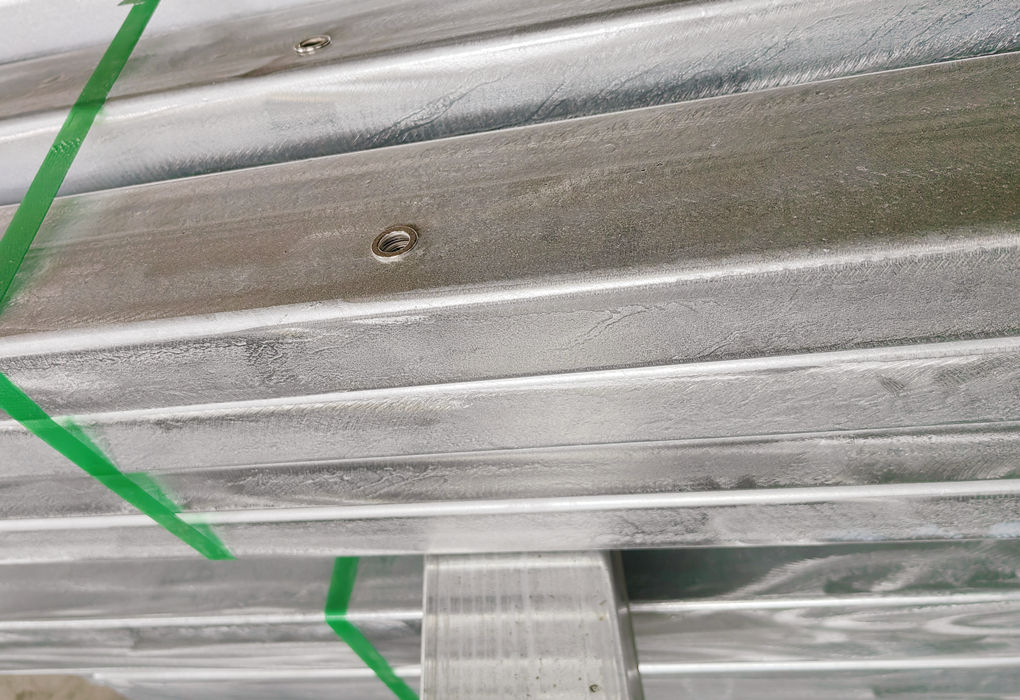

The metal structure of the Padel Court Cover consists of 10 columns, which are hot-dip galvanized square steel pipes of 150 * 150 * 3.5mm,

Industry standard hot-dip galvanized layer,

 Add outdoor powder coating to the surface of hot-dip galvanized steel pipe Anti-rust and anti-corrosion for outdoor use.

Membrane Material：Double coated PVC 900 g / m².

Ground fixation method: Concrete is used for underground embedding, with a depth of 100 * 50 * 50 cm for underground concrete embedding.

The embedded parts are composed of 6 reinforced steel bars to ensure the fixed strength of the column.

This type of padel court roof has strong outdoor wind load resistance, simple installation, and is convenient and practical.

It can block the hot sun in the Summer , and  can block rain and snow in the winter, making your padel tennis club operate 365 days a year.

Our roof uses high-quality Q235B steel as the raw material, which is processed by intelligent equipment and parts are pressed into shape by machine,

making the installed ceiling structure compact, safe and firm .
