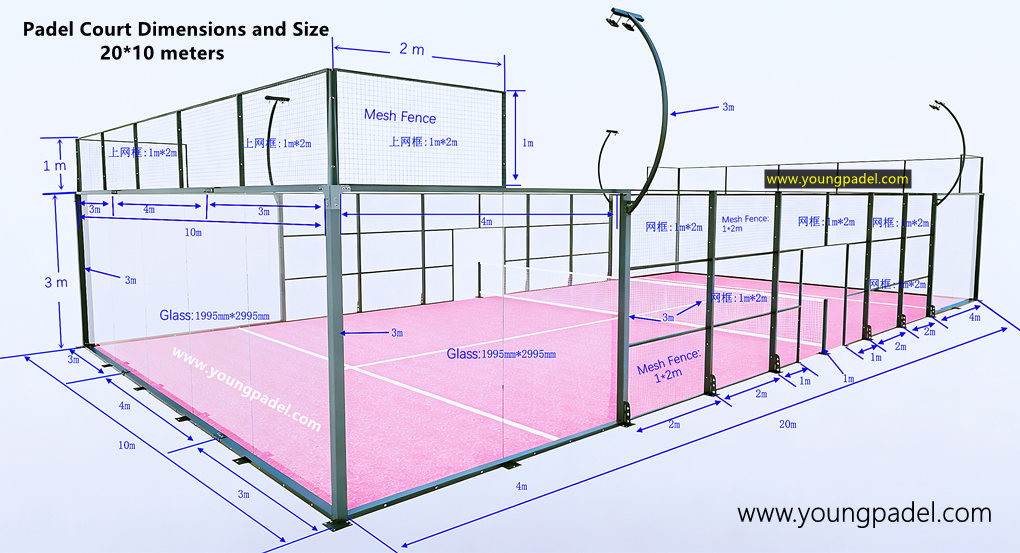

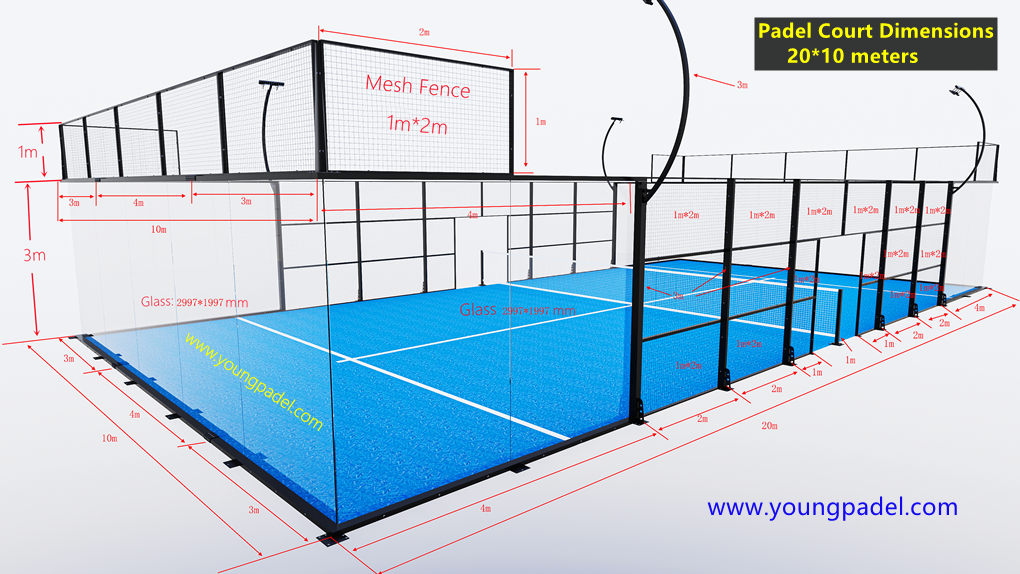

The Padel Court Dimensions and Diagram is Detailed Description in the 2 photos.

International Padel Federation Official Size： Inner diameter of the padel courts is 20*10 meters，

Total Court area 200 m2 , outer diameter Size of Court : 20.38m*10.38m.

Dimensions of a Padel Tennis Court in Feet: 65.6 feet Long*32.8 feet Wide.

A standard padel court consists of the following components:

 Total 18 tempered glass , 12mm thickness, each glass size : 2995*1995mm.

 Total 46 pieces mesh fencing panels, each measuring 1*2 meters.

  Total 16 sets columns, each 3 meters high; 4 light post 6 meters high; corner posts measuring 100*100*3mm; mesh frame posts measuring 100*50*3mm;

      2 tennis net posts: 1 meter high. 20 sets top and bottom crossbeams, each measuring 100*50*3mm. All posts, crossbeams,

         and mesh columns are made of hot-dip galvanized square tube.

  1 tennis net, size 10 meters long and 0.92 meters high.

  Total  200 square meters of artificial turf, 20*10 meters.

  Total 8 sets IP65 LED lights, each 200 W.   Screws and Accessories.

Detailed component dimensions of 1 set padel court are precisely marked on the diagram photos.

The total weight of 1set court is 6150 kgs, with a volume of 13.9 cubic meters.
