Padel Court Roof Dimension


Padel Court Roof Dimension

  • What Is Size and Dimension of Padel Court Roof ?
    What Is Size and Dimension of Padel Court Roof ? Apr 28, 2024

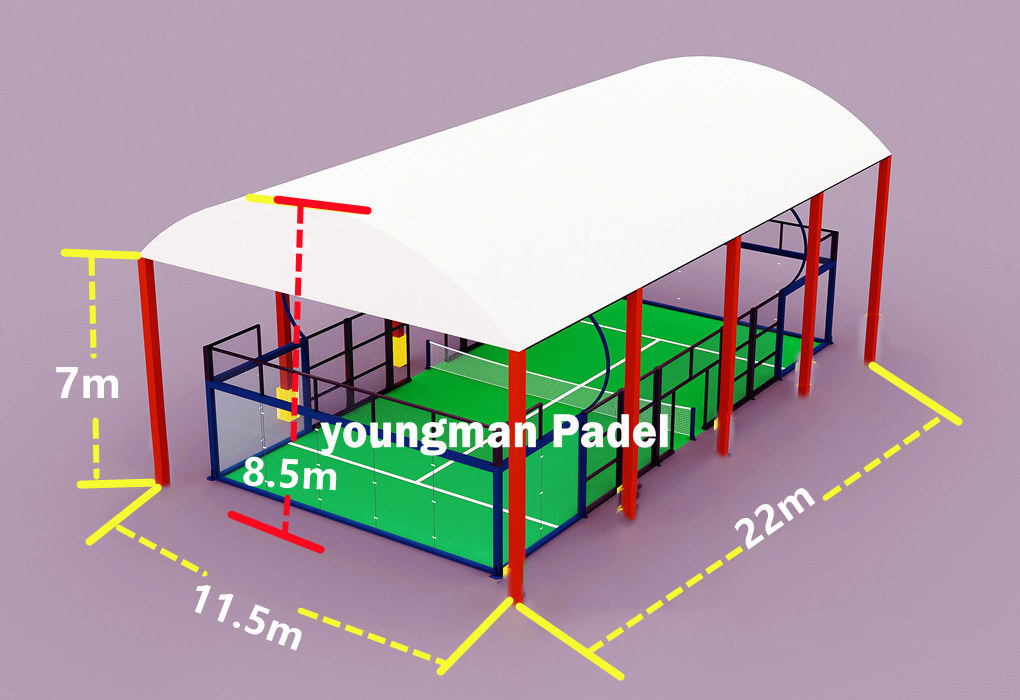

      The Size and dimensions of the Panoramic Padel Court specified by WPT and FIP is 20 meters in length and 10 meters in width. We recommend the size of Padel Court Roof: 22 meters in length and 11.5 meters in width. The top height of the padel roof is not less than 8.5 meters. The height of the corner columns of the roof is 7 meters. If the height of the padel court tent is too low, it will affect the padel games. If the height of the padel courts roof is higher than 9 meters, it will be better, but safety must be considered install outdoors. The construction and installation of the outdoor roof of the padel tennis court must consider safety and wind load resistance. Our padel cover is scientifically designed by outdoor architectural structural designers, and the structure is firm and safe. In order to enhance the outdoor wind load resistance, we adopt the concrete underground embedded parts mode. 12 sets embedded parts are used underground with flange size: 35*40cm, reinforcement specification:18mm*500mm steel bar * 6 sets. The underground embedded parts and the integral concrete foundation become a whole. Such a structure makes the overall steel structure of the roof stronger and safer. 12 sets columns H-beam steel structure columns, with embedded parts, dimensions: H200-120*6*8mm,Height: 7M, designed strictly in accordance with outdoor building safety standards. 6 sets curved beams use I-beam steel structure curved beams, size H200-120*6*8mm, Height after installation: 8.5 meters.  30 sets crossbars dimensions: 114x3mm. The membrane material of the padel court cover ceiling: pvdf self-cleaning membrane,1250g white architectural PVDF membrane, UV anti-ultraviolet, outdoor use for more than 25 years.       Installing and build an outdoor padel court with roof has the following advantages:   1.In order to increase the business hours and profits of the paddle tennis club, it is not affected by bad weather such as rain and snow. The club can be open 365 days per year. 2. It is more popular for padel players and improves the environment and comfort experience of the club. 3. The roof can protect the padel tennis court from rain and snow, and prevent the paddle tennis court from being wet and rainy. This can delay the service life of the court.
