Full Views Premier Padel Official Court From China

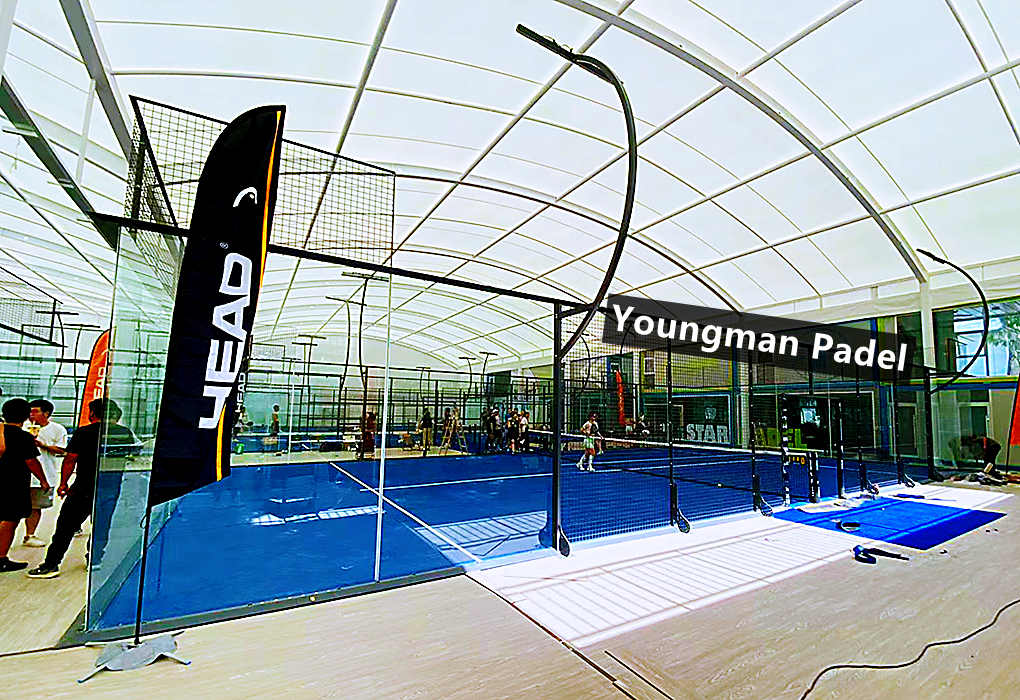

This Full panoramic glass structure of the Premier Padel Official Court is the designated court for the global Premier Padel Tour,

with transparent panoramic vision all around and a safe earthquake-resistant system. Improve the quality and safety of the World Padel Tour.

The Premier Padel Court has a different metal structure from the ordinary paddle tennis court.

Court Size and specifications: 20 meters (total length), 10 meters (total width)

There are no corner columns at the four corners of the court. They are all composed of panoramic transparent tempered glass.

Forming a 360-degree transparent vision all around. Give the audience outside court and the padel tennis players a super boundless space feeling.

The metal frame structure of the glass area adopts an integral structure, which is more solid.

China Youngman Padel is the first factory in China to design and produce this type of padel tennis court,

our court size and specification are Comply with the premier padel official court. Meet the FIP specification standard.

We provide premium quality and cheap factory price for all customers.

The metal structure of the Premier Padel Official Court:

Light pole columns: hot-dip galvanized square tube: 100*50*3mm. Use reinforced Q235B high-quality steel pipe.

The steel pipe strength is upgraded, and the firmness and stability are stronger.

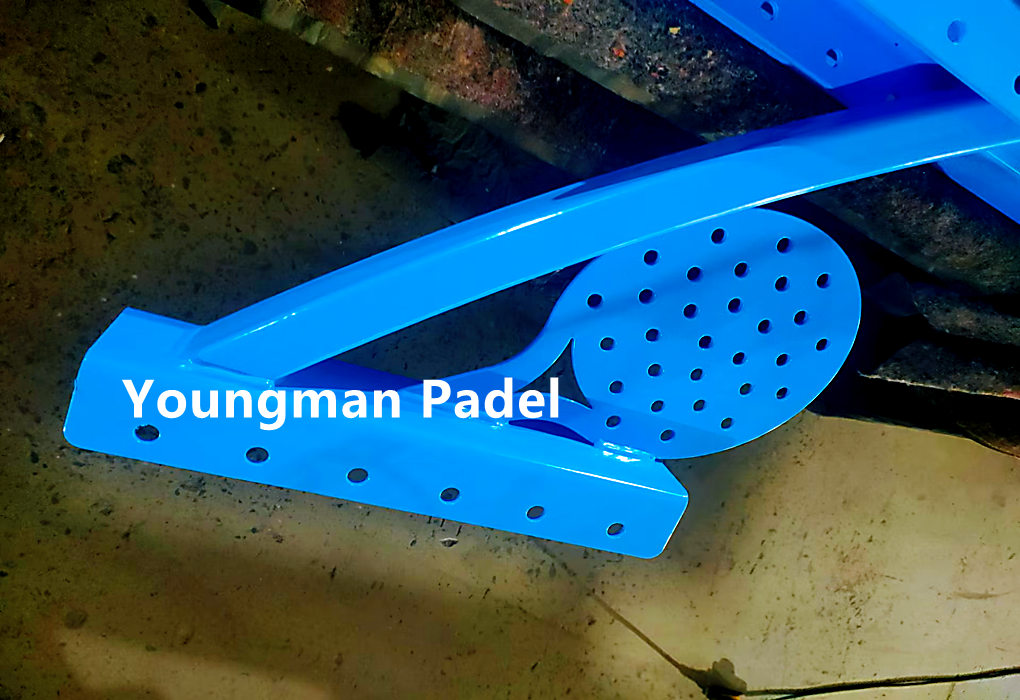

Under the columns is a "racket shape" link block, which has a strong texture and is more beautiful.

The upper and lower beams of the glass area are all made of 5mm thickness aluminum alloy.

The advantages of aluminum alloy are lighter weight and stronger hardness. Ensure the safety of the glass area support.

The upper and lower beams are designed in V shape, and the view is unobstructed.

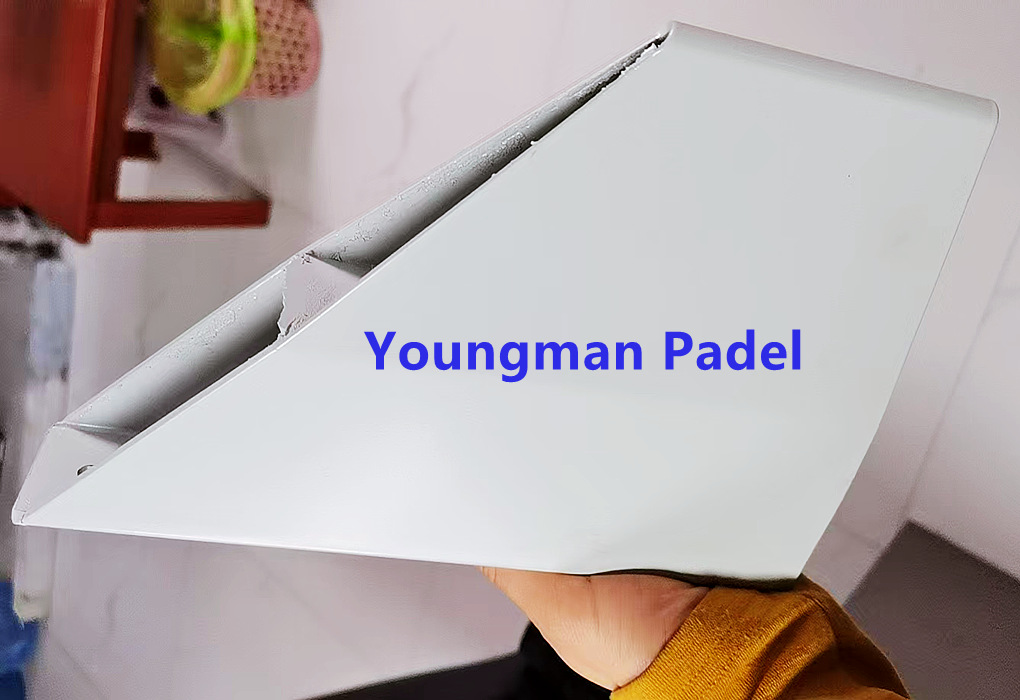

The down beams on the ground is fixed in an embedded hidden way, with a complete cover plate on it.

There are no protruding accessories on the appearance, which makes the appearance more beautiful.

Glass: 12mm high-quality tempered explosion-proof glass, special design size. There is no gap between the glass after installation.

The glass is finely ground around. Beautiful and safe.

Artificial grass: MONDO design Premier Padel Court special artificial grass:

Grass Fiber：100% PE monofilament Anti-UV Curly fiber，

Manufacturing process，Tufting，Height：13mm. Dtex:10000,Gauge: 3/16inch.

Stitch Density: 58500 stitches/m^2.

Backing Cloth: Fleeced backing with PET yarn reinforced + PP Anti-UV backing.

Backing Coating: Polyurerthane (PU) appr. 800 g/ m^2.

Water permeability : ≥30L/min/m² with 2mm perforation holes .
